Amphenol C091 31F005 100 2：M16 Female cable connector
Short Description:
C091 31F005 100 2 – M16 Female cable connector
with internal strain relief and metal locking ring
5 contacts
silver plated
4-6mm cable diameter
Product Detail
Product Tags
Amphenol C091 31F005 100 2 – M16 Female Cable Connector
Model Number：C091 31F005 100 2 (Amphenol Tuchel Industrial Series)
Connector Type：M16 Female Cable Connector (Socket)
Locking System：Screw-Lock Coupling (IEC 61076-2-106 compliant)
Pin Configuration：2 Positions (Standard for signal/power transmission)
IP Rating ：IP67/IP69K (Dust/waterproof in mated state)
Termination：Internal Strain Relief + Metal Shell for secure cable retention
Material：Nickel-plated Zinc Alloy (Corrosion-resistant EMI shielding)
Voltage/Current：250V AC/DC, 4A per contact
Cable Compatibility：Ø4‒8.5mm diameter cables
Temperature Range：-40°C to +105°C (Suitable for extreme environments)
Data Overview

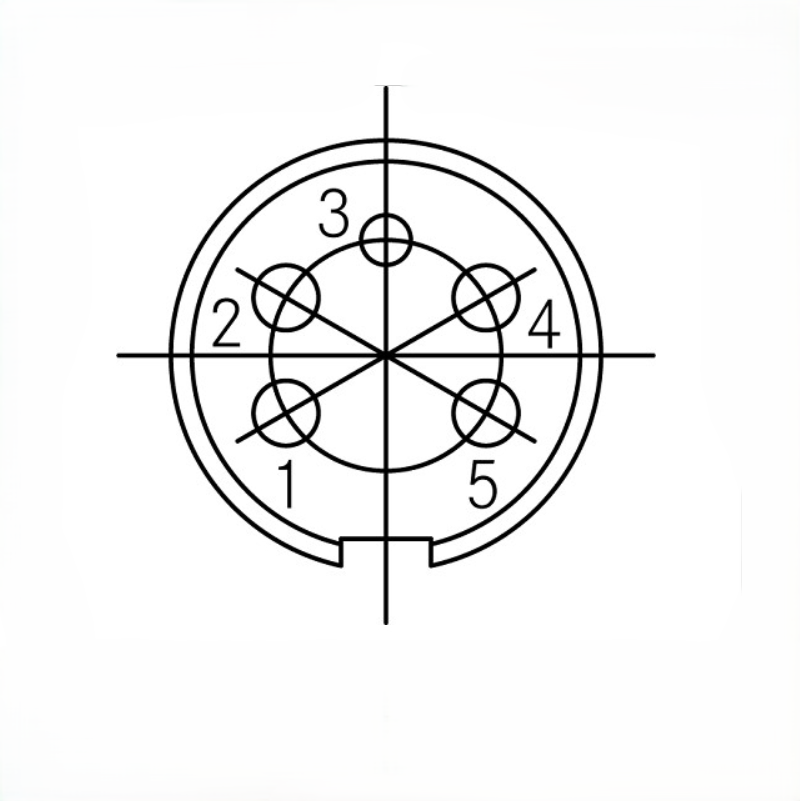

| Contacts | 5 |
| Cable Diameter | 4 - 6mm |
| Current Rating | 7A |
| Wire Gauge | 0.5 mm² (20 AWG) |
| Protection | IP67/ 65 (in mated condition) |
Contact Features
| Termination | Solder |
| Locking | Screw |
| Contact Plating | Silver |

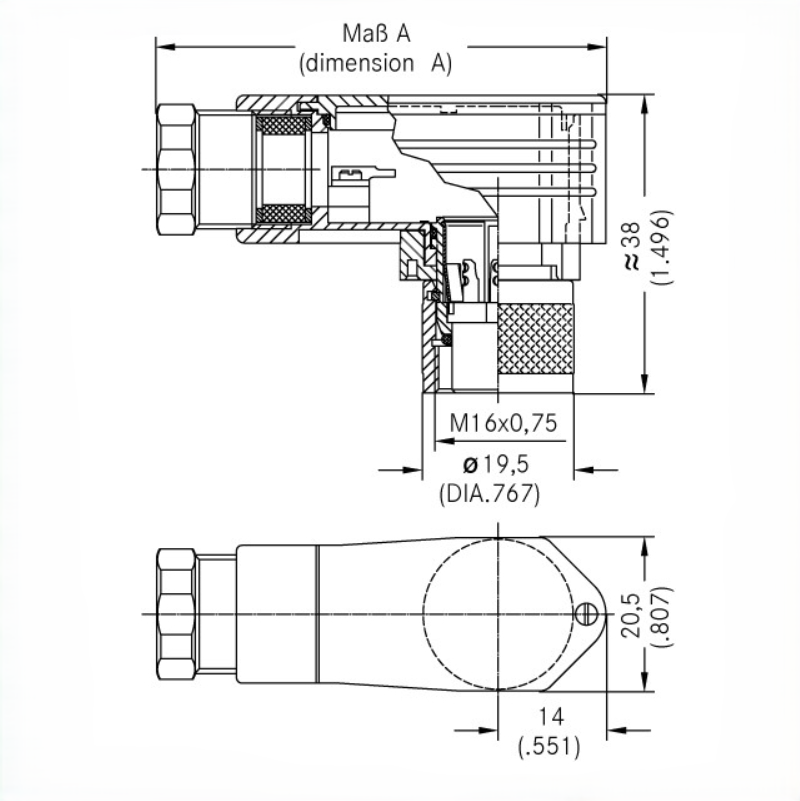

| Version | Right angled; metal |
| Housing | Zinc Die Cast, Nickel Plated |
