AT04-2P-RD01Conectores2-Way Receptacle, Male, Reduced Diameter Seal (E-Seal)Amphenol
Short Description:
PART NUMBER: AT04-2P-RD01
No. of Positions: 2
Gender: Male
Wire Range: 14-20 AWG (2.0-0.5mm²)
Color: Grey
IP Rating: IP67 (in mated condition)
Seal Material: Silicone Elastomer
RoHS Compliant: Yes
Mating Part(s)*: AT06-2S* Plug
Product Detail
Product Tags

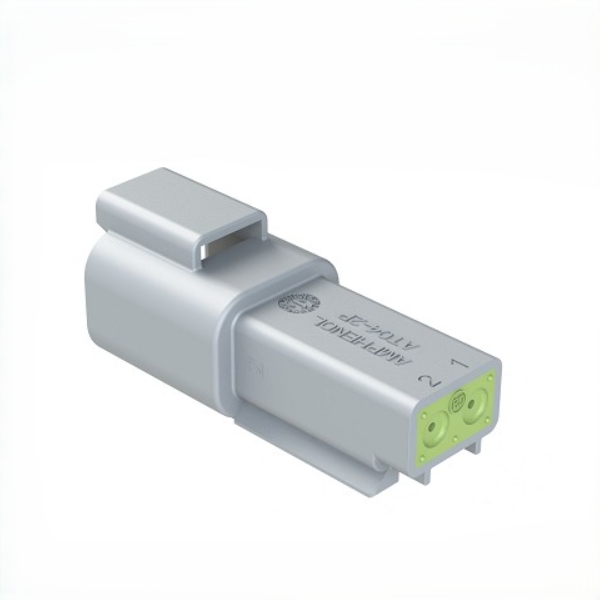

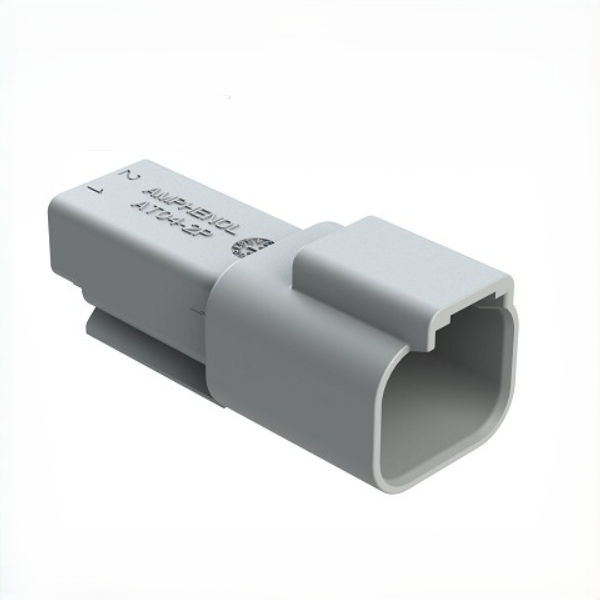

Amphenol AT04-2P-RD01 2-Way Automotive Connector with E-Seal Technology
Number of Positions:2
Gender:Female (Receptacle)
Contact Type:Pin (Male)
Wire Gauge Range:14-20 AWG
Current Rating :13A
Voltage Rating :250V AC (typical)
Insulation Resistance:1000 MΩ
Contact Material:Copper alloy
Housing Material:Thermoplastic
Color:Gray
Protection Rating:IP67
Operating Temperature:-55°C to +125°C
Data Overview
| No. of Positions | 2 |
| Contact Size | 16 |
| Voltage Rating | 250V |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| IP Rating | IP67 (in mated condition) |
Contact Features
| Contact Type (Pin/Socket) | Pin |
| Gender | Male |
| Housing Material | Thermoplastic |
| Shape | Rectangular |
| Seal Material | Silicone Elastomer |
