AT06-12SD-RD01Automotive Connectors12-Way PlugFemale Amphenol
Short Description:
AT06-12SD-RD01 12-Way Plug
Female
D Position Key
Reduced Diameter Seals (E-Seal)
Product Detail
Product Tags

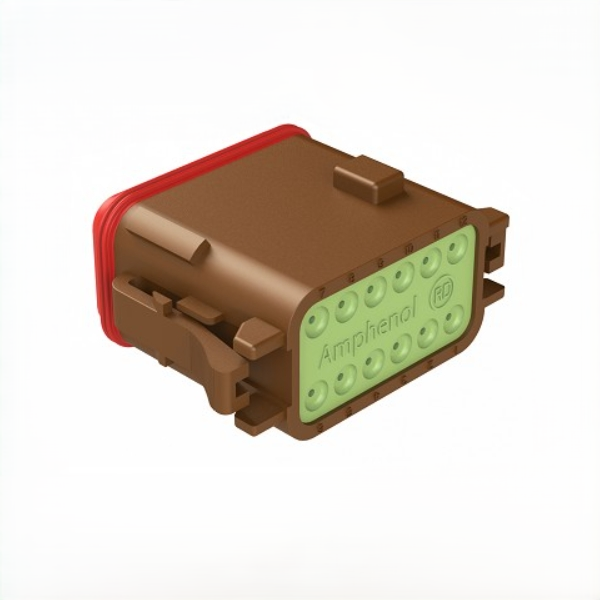

Amphenol AT06-12SD-RD01 Automotive Connector: 12-Way Female Plug
Position/Type：12-way plug (Receptacle, Socket Female) with RP interface
Current Rating：13A @ 250V operating voltage
Wire Compatibility：Supports 14-20 AWG wires (1.35–3.05mm diameter)
Temperature Range：-55°C to +125°C operational resilience
Housing Material：UV-resistant thermoplastic (RoHS compliant)
Sealing：Reduced-diameter environmental seal with IP67-equivalent protection
Mounting Style：Cable-mount/free-hanging design
Data Overview
| Product Type | Plug |

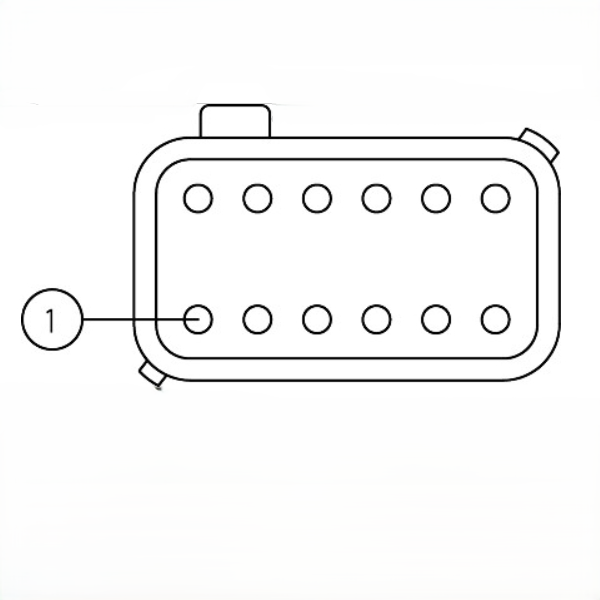

| Number of Positions | 12-Way D Position Key |
| Contact Size | 12 |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| Amperage | 13A |
Contact Features
| Contact Type | Socket |
| Color | Brown |
| End Cap/Rear Seal Dimensions | .053" - .120" |
| Wedgelock Part Number | AW12S |
| Mating Part(s)* | AT04-12PD* Receptacle |
