AT06-4S-EC01Automotive Connectors4-Way Plug, Female Connector with End Cap, Grey Amphenol
Short Description:
Manufacturer:Amphenol
Product Category: Automotive Connectors
Number of Positions: 4 Position
Gender:Plug (RP – Female)
Mounting Style:Cable Mount / Free Hanging
Wire Gauge Min:20 AWG
Wire Gauge Max:14 AWG
Color:Gray
Product Detail
Product Tags
Manufacturer:Amphenol
PART NUMBER: AT06-4S-EC01
Type:4-Way Plug, Female Connector with End Cap
Color:Grey (also available in black, blue, brown, green, red, white, yellow)
Current Rating :13A
Voltage Rating :250V
Wire Range:14-20 AWG
Insulation O.D.:2.24mm - 3.68mm (.088" - .145")
Operating Temperature:-55°C to +125°C
Waterproof Rating:IP67 (when mated)
Mating Cycles:100 cycles minimum
RoHS Compliance:Yes
Housing Material:Thermoplastic (UV resistant)
Seal Material:Silicone rubber
Data Overview
| No. of Positions | 4 |
| Contact Size | 16 |
| Amperage | 13A |
| Voltage Rating | 250V |
| IP Rating | IP67 (in mated condition) |
Contact Features
| Contact Type (Pin/Socket) | Socket |
| Gender | Female |
| Housing Material | Thermoplastic |
| Shape | Rectangular |
| Seal Material | Silicone Elastomer |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

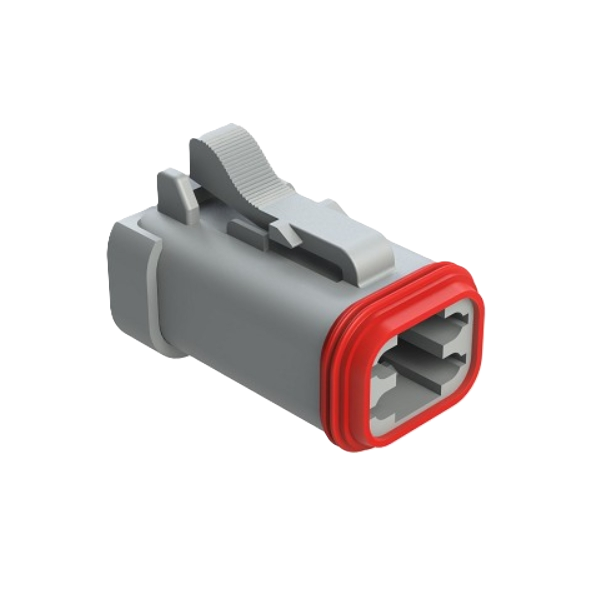

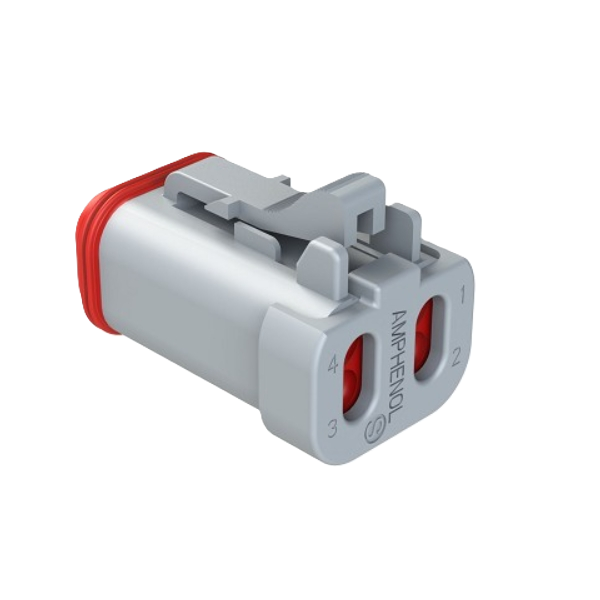

Product Display
