ATM04-12PA Automotive Connectors12-Way Receptacle Amphenol
Short Description:
Description: Male Cable Connector 12pol A-Key
number of positions (w/o PE) 12
gender male
rated current (40 °C) 7.5 A
IP-class mated IP67
Product Detail
Product Tags

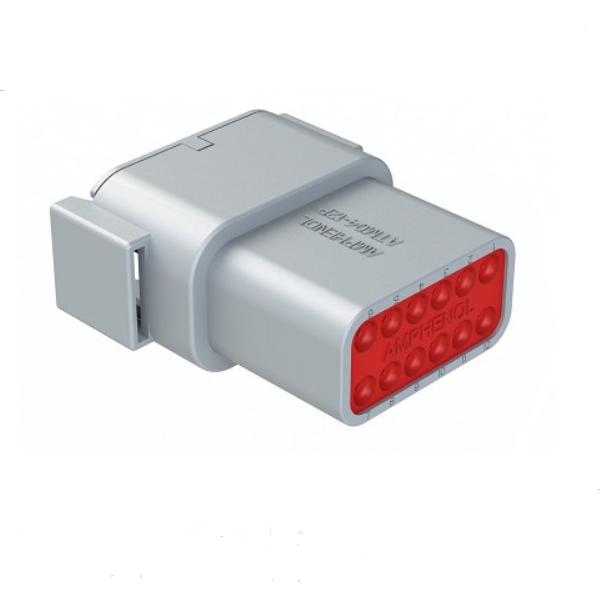

The Amphenol ATM04-12PA is a 12-way female receptacle connector engineered for automotive applications, featuring an IP67-rated seal that provides robust protection against dust, moisture, and environmental contaminants to ensure reliable performance in harsh vehicle conditions. Constructed with a durable thermoplastic housing for superior mechanical strength and compliance with RoHS environmental standards, it supports crimp termination for secure electrical connections and operates across a wide temperature range of -55°C to +125°C.
Data Overview
| Product Type | Plug |
| Number of Positions | 12-Way A Position Key |
| Contact Size | 20 |
| Wire Range | 16-22 AWG (1.5-0.35 mm²) |
| Amperage | 7.5A |
Contact Features
| Contact Type | Pin |
| Seal Diameter | 1.35mm (.053") - 3.05mm (.120") |
| Wedgelock Part Number | AWM-12P |
| Mating Part(s)* | ATM06-12SA* Plug |
| rated voltage | 250 V |
