ATM04-4P-SF01BLK Connectors 4-Position Receptacle (Male Pin),Snap-Fit End Cap,Amphenol
Short Description:
Part Number:ATM04-4P-SF01BLK
Brand:Amphenol (OEM/ODM support available)
Type:4-Position Receptacle (Male Pin)
Contact Size: 20
Wire Range: 16 – 22 AWG (1.5 – 0.35 mm²)
Amperage: 7.5A
Housing Material: Thermoplastic
Product Detail
Product Tags
Part Number:ATM04-4P-SF01BLK
Brand:Amphenol SINE Systems
Type:4-Position Receptacle (Male Pin)
Shell Size:#22 (Standard)
Current Rating :10A per contact (max)
Voltage Rating :250V AC/DC
Sealing:Snap-fit end cap (IP67 rated)
Material:Housing, Nylon 66|Contacts,Brass (gold-plated)
Color:Black (standard automotive finish)
Operating Temperature: -55°C to +125° C
Termination:Crimp (16–22 AWG)
Mounting:Panel/Grommet
Certifications:RoHS, ELV, TUV/SGS16949
Applications:Vehicle lighting, sensors, ECU modules
Data Overview
| No. of Positions | 4 |
| Contact Size | 20 |
| Contact Type (Pin/Socket) | Pin |
| Gender | Male |
| Wire Range | 16 - 22 AWG (1.5 - 0.35 mm²) |
Contact Features
| Housing Material | Thermoplastic |
| Type | 4-Position Receptacle (Male Pin) |
| Seal Material | Silicone Rubber |
| Color | Black |
| IP Rating | IP68 (1M of water for a period of 24 hours, in mated condition)IP69K (in mated condition) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

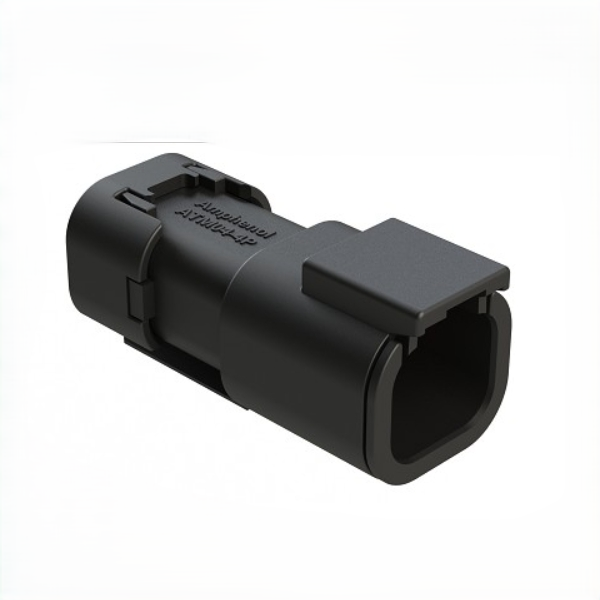

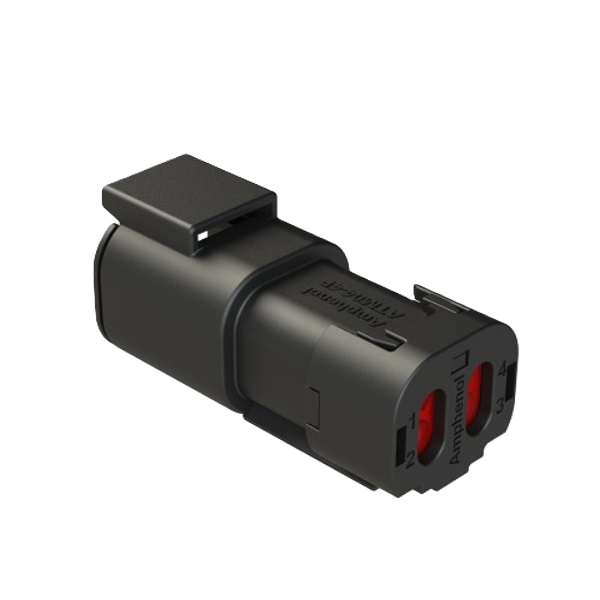

Product Display
