ATP04-4P-PM01Amphenol 4-Way Receptacle, Male Flange
Short Description:
Product Type: Receptacle with Flange
No. of Positions: 4-Way
AWG: 10-14
Amperage: 25A
Contact Type: Pin
Product Detail
Product Tags

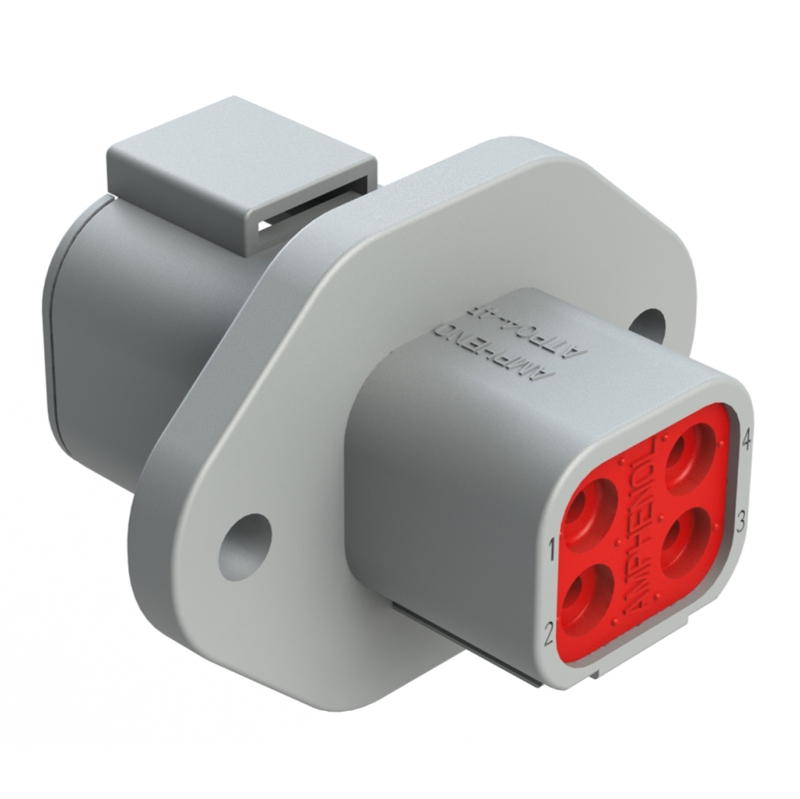

ATP04-4P-PM01 Amphenol 4-Position Panel Mount Receptacle
Manufacturer: Amphenol SINE Systems
Contact Type: Male pins (socket housing accepts female plugs)
Positions: 4 contacts (2-row configuration)
Mounting: Flange panel mount with self-threading screws
Wire Compatibility: 10–14 AWG cables
Housing Material: Thermoplastic (UL 94 V-0 flame retardant)
Color: Gray (inferred from variant ATP04-4P-PM08G)
IP67-rated sealing prevents dust/water ingress (1m depth immersion protection)
Operational temperature range: -55°C to +125°C
Data Overview
| Contact Size | 12 |
| No. of Positions | 4-Way |
| AWG | 10-14 |
| Amperage | 25A |
| Seal Wire Range (mm) | 3.40 - 4.95 |
Contact Features
| Product Type | Receptacle with Flange |
| Contact Type | Pin |
| Color | Grey |
| Mating Part(s) | ATP06-4S* Plug |
| Wedgelock Part Number | AWP-4P |
