ATP04-4P-PM07G Conectores automotrices 4 Pin Receptacle, Screw Panel Mount Amphenol
Short Description:
ATP04-4P-PM07G 4 Pin Receptacle
Screw Panel Mount
with Gasket
Black
Product Detail
Product Tags

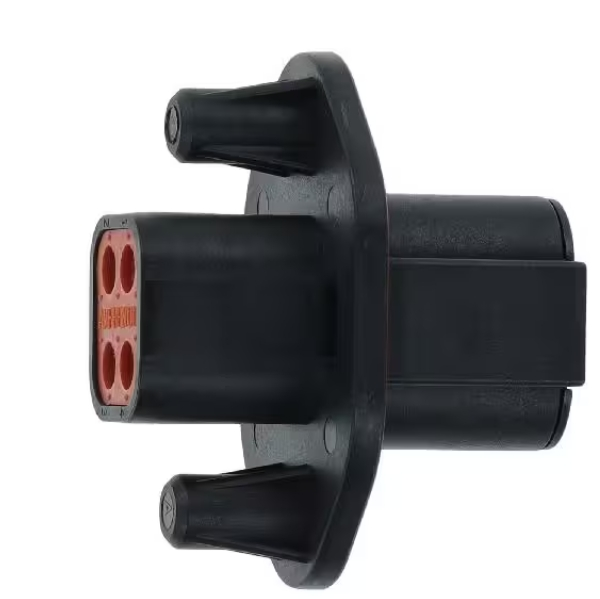

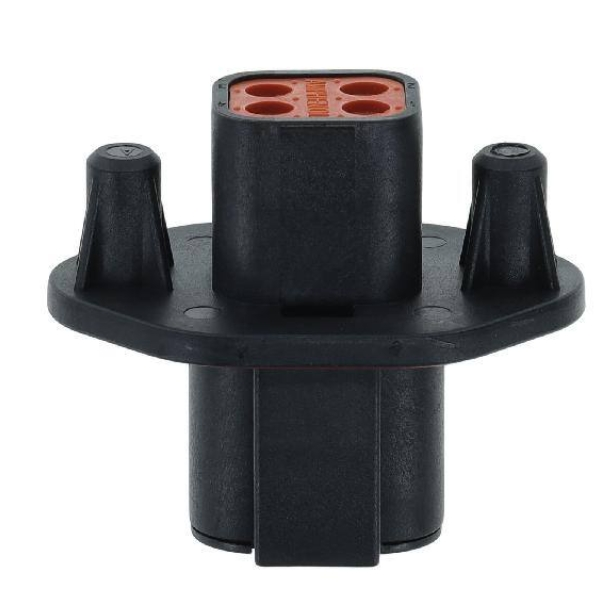

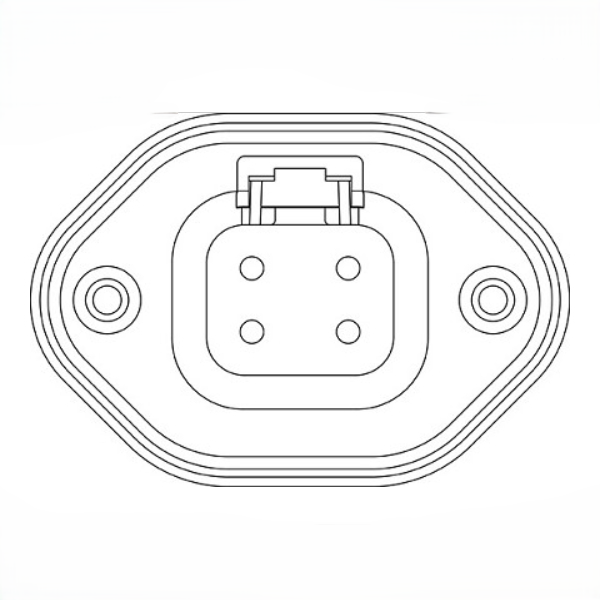

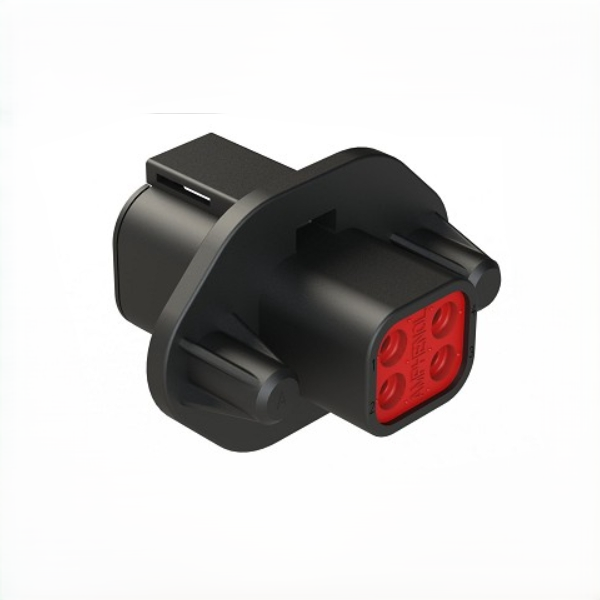

Amphenol ATP04-4P-PM07G: 4-Pin Automotive Connector Receptacle
Key Specifications & Features:
Configuration: 4-pin female receptacle (socket) with screw panel mounting.
Design: Integrated sealing gasket for enhanced environmental protection.
Color: Standard black housing for industrial compatibility.
Series: Part of Amphenol's ATP connector series, designed for high-vibration environments.
Wire Compatibility: Supports 10-14 AWG wire gauges (based on ATP series standards).
Materials: Robust construction meeting automotive-grade durability requirements.
Data Overview
| No. of Positions | 4 |
| Contact Size | 12 |
| Contact Type (Pin/Socket) | Pin |
| Amperage | 25A |
| Color | Black |
Contact Features
| Seal Diameter | 3.40mm(.134") - 4.95mm(.195") |
| IP Rating | IP67 |
| Wire Range | 10-14AWG |
| Dielectric Value: Dielectric withstanding voltage | less than 2 mlliamps current leakage @ 1500 volts AC |
| Operating Temperature | -55°C to +125°C |
