ATV02-18PA Rectangular Connector Housing 18 position flange mount receptacle Amphenol
Short Description:
ATV02-18PA 18 position flange mount receptacle
Size 16 contact
Male
Grey
key A. Comparable to PN# DTV02-18PA
Product Detail
Product Tags
ATV02-18PA is an 18-position rectangular connector housing designed as a flange-mount receptacle, manufactured by Amphenol for robust industrial and automotive applications. It features a thermoplastic (TP) housing in gray, ensuring durability and compliance with UL 94 V-0 flammability standards.
Position Configuration: 18-position layout in a 3-row arrangement for high-density electrical connections.
Current rating: 13A per position.
Voltage rating: 500V.
Insulation resistance: 1000 MOhms.
Wire compatibility: 16–22 AWG wire gauge range.
Temperature Range: Operational from -55°C to +125°C, suitable for extreme conditions.
Environmental Protection: IP67-rated for dust and water resistance, with additional IP69K certification for high-pressure environments.
Safety Compliance: Meets UL 94 V-0 flame-retardant standards and IP67/IP69K ingress protection for enhanced reliability.
Data Overview
| No. of Positions | 18 |
| Amperage | 13 A |
| Wire Range | 14-20 AWG (2.0-0.5mm²) |
| IP Rating | IP68 (in mated condition) |
| Volts | 250 V |
Contact Features
| Contact Size | 16 |
| Contact Type (Pin/Socket) | Pin |
| Gender | Male |
| Color | Grey |
| Operating Temperature | -55°C to +125°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

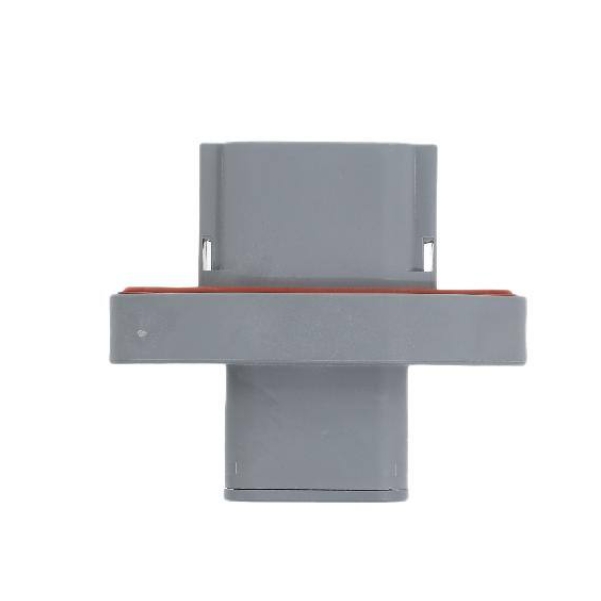

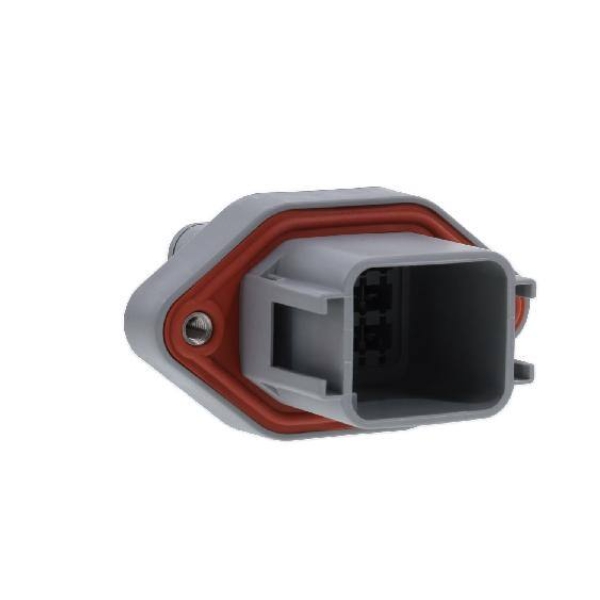

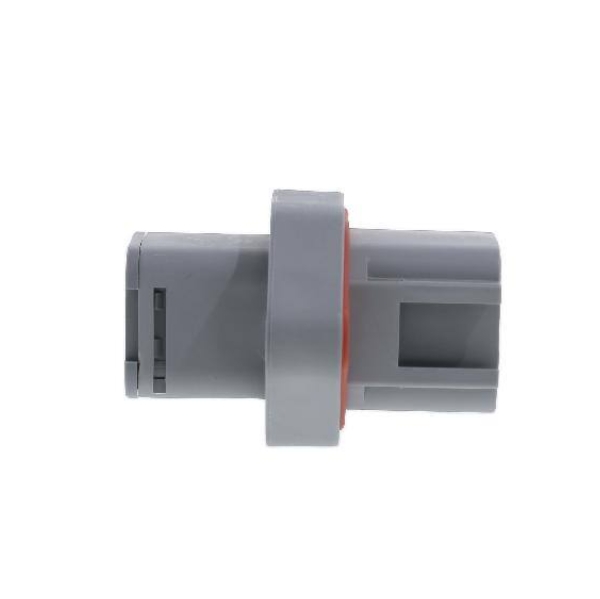

Product Display
