1418844-1: Automotive Terminals, Receptacle, Mating Tab Width 1.2 mm [.047 in], Tab Thickness .6 mm [.024 in], 23 – 22 AWG Wire Size, MCON Interconnection System
Short Description:
Receptacle Terminal
23 – 22 AWG
.25 – .35 mm² Wire
1.2 mm [.047 in] Tab Width
Tin (Sn), Sealable
.63 mm [.025 in] Tab Thickness
MCON 1.2mm
Product Detail
VIDEO
Product Tags
TE Connectivity 1418844-1 Automotive Receptacle Terminal
Series：MCON Interconnection System
Tab Width：1.2 mm (0.047 in)
Tab Thickness：0.6 mm (0.024 in)
Wire Size ：23–22 AWG (0.26–0.33 mm²)
Contact Plating：Tin (Sn) for corrosion resistance
Current Rating ：7–10 A (depends on wire gauge)
Material：Copper alloy (high conductivity)
Operating Temp：-40°C to +125°C
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 23 – 22 |
| Wire Size (mm²) | .25 – .35 |
| Mating Tab Width | 1.2 mm [ .047 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.2mm |
| Crimp Type | F-Crimp |
| Mating Tab Thickness | .63 mm [ .025 in ] |
| Terminal Seal Type | Single Wire Seal (SWS) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

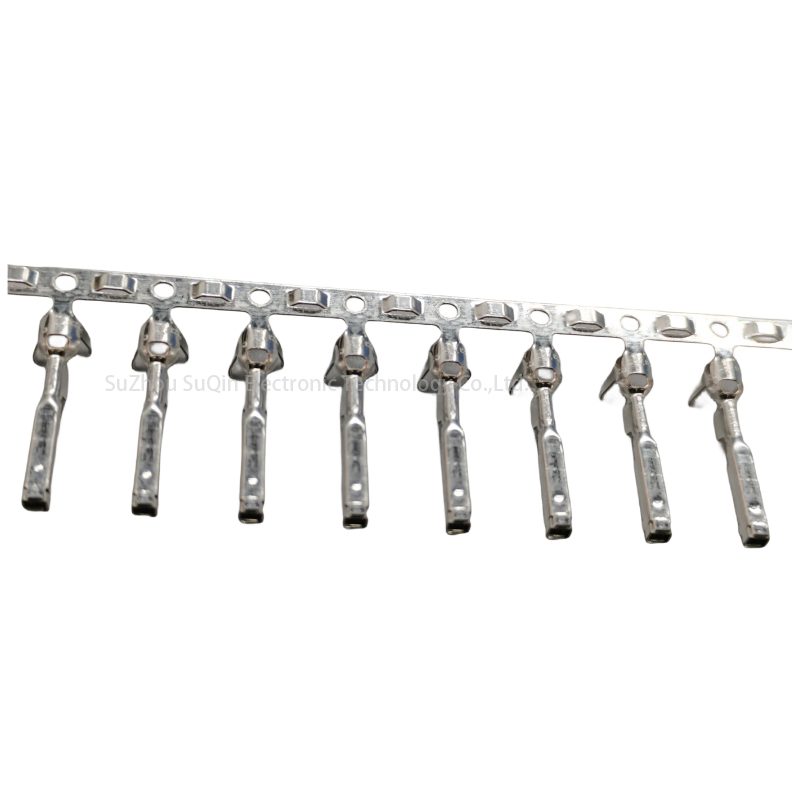

Product Display
