C091 11G007 000 5 U Circular DIN Connectors Female Receptacle Amphenol
Short Description:
Description:Female Receptacle, Hex Nut; Rear Mount; 7 Pin; Crimp; IP67
rated voltage 300 V

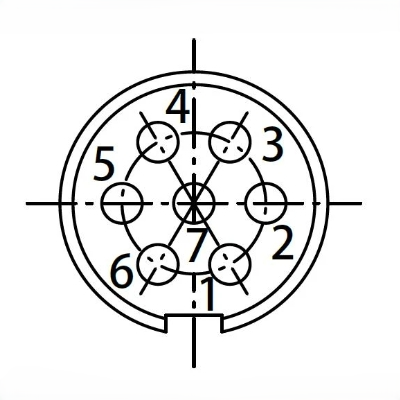

number of positions (w/o PE) 7
rated current (40 °C) 7 A
termination crimp
IP-class mated IP67
Product Detail
Product Tags
The C091 11G007 000 5 U is a high-performance Circular DIN Connector ，Female Receptacle connector, part of the C091D series with quick-lock coupling for secure mating.5 crimp-style contacts, compatible with wire gauges ranging from 28 AWG to 18 AWG.Features IP67/IP65 protection when mated, ensuring resistance to dust and water ingress.Metal backshell and screw coupling provide robust EMI/RFI shielding.Operates at 300V, suitable for low-to-medium power applications.Designed for panel or PCB mounting, with options for cable termination.
Data Overview
| part category | female receptacle |
| gender | female |
| lace | without lace |
| ocking system | other quicklock system |
| assembly of receptacle | single hole rear assembly |
Contact Features
| rated voltage | 300 V |
| rated current (40 °C) | 7 A |
| IP-class mated | IP67 |
| lower temperature | -40 GC |
| upper temperature | 100 GC |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

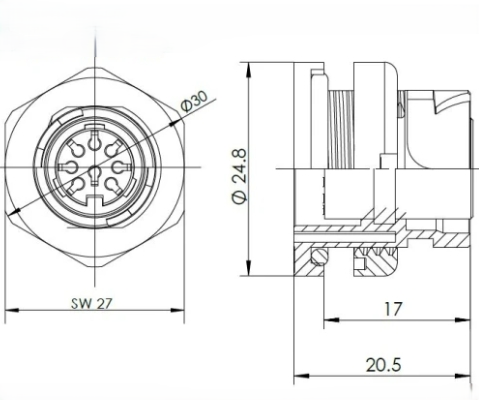

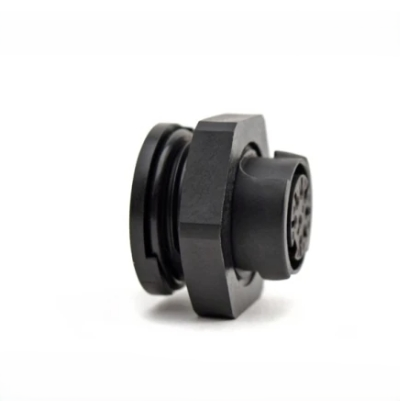

Product Display
