C091 11H012 001 2 Conectores M16 Male cable connector with internal strain relief and metal locking ring Amphenol
Short Description:
C091 11H012 001 2 – M16 Male cable connector
with internal strain relief and metal locking ring

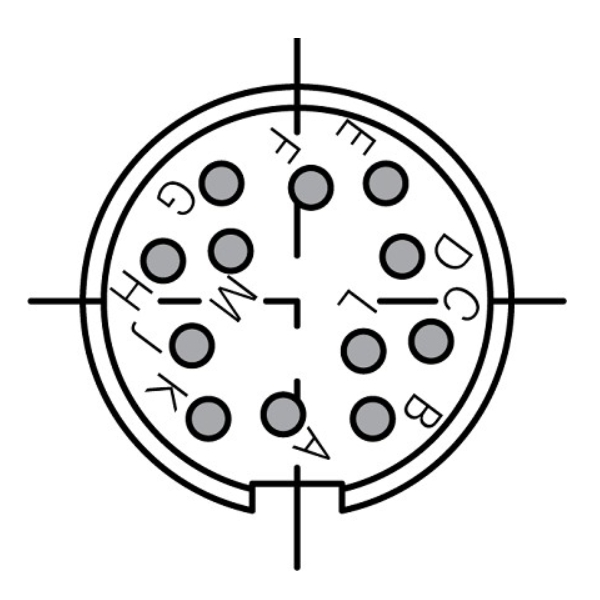

12 contacts
6-8mm cable diameter
Contacts sold separately
Product Detail
Product Tags

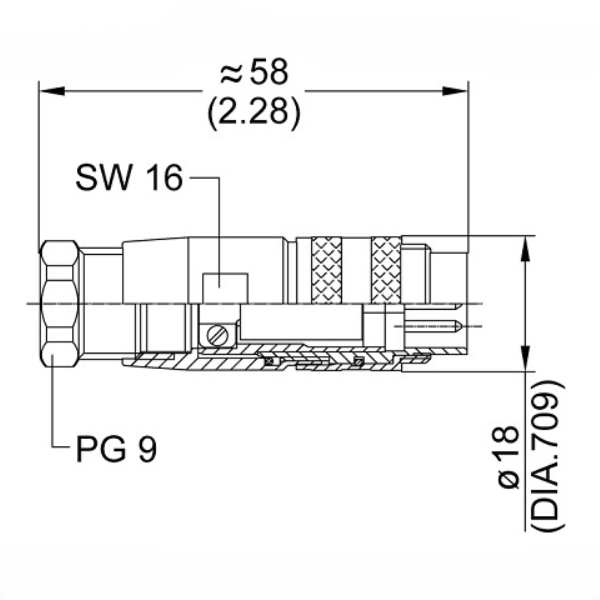

Amphenol C091 11H012 001 2 M16 Male Cable Connector
Model Number：C091 11H012 001 2
Connector Type：M16 Male Cable Plug Direct cable integration without panel cutouts
Locking System：Metal Screw Coupling (IEC 61076-2-106 compliant) Vibration-proof connection in industrial environments
Pin Configuration：2 PositionsCompact solution for power/signal circuits
IP Rating ：IP67/IP69K (when mated) Withstands dust, high-pressure wash & temporary submersion
Termination：Internal Strain Relief + Metal Locking Ring Prevents cable pull-out under dynamic stress (e.g., machinery/vehicles)
Shell Material：Nickel-plated Zinc Alloy EMI shielding + corrosion resistance in harsh conditions
Voltage Rating ：250V AC/DC Industrial power/signal compatibility
Current Rating ：4A per contact Suitable for sensors, actuators & control systems
Cable Compatibility ：Ø4‒8.5mm Flexible integration with standard industrial cables
Temperature Range：-40°C to +105°C Reliable performance in extreme climates
Mating Cycles ≥100 cycles：Long service life
Compatible Series：Amphenol C091 Receptacles (e.g., C091B 11B012) System interoperability across installations
Data Overview
| Contacts | 12 |
| Cable Diameter | 6 - 8mm |
| Current Rating | 3A |
| Termination | Crimp |
| Protection | IP67/ 65 (in mated condition) |
Contact Features
| Locking | Screw |
| Insert | Thermoplastic |
| Version | Straight; metal |
| Housing | Zinc Die Cast, Nickel Plated |
| Operating Temperature | -40°C to +100°C |
