C091 11S008 000 2 Connectors M16 Flange mount male metal receptacle with O-ring seal and ring nut Amphenol
Short Description:
C091 11S008 000 2 – M16 Flange mount male metal receptacle
with O-ring seal and ring nut

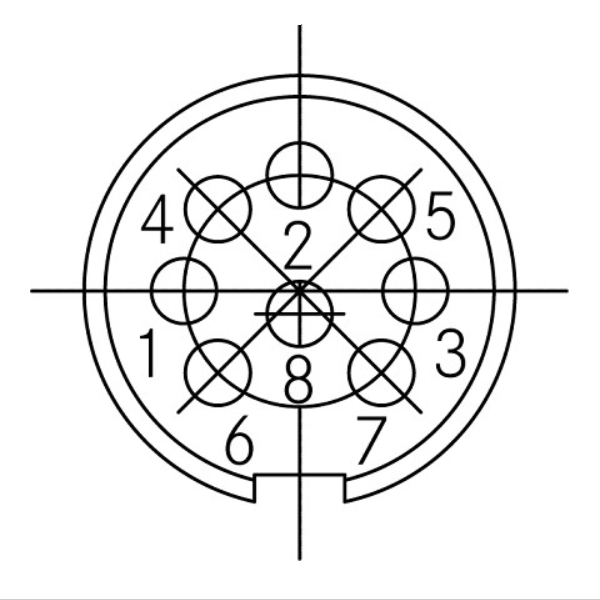

8 contacts
Contacts sold separately
Product Detail
Product Tags
The Amphenol C091 11S008 000 2 is an M16 threaded male receptacle connector with a rugged zinc alloy housing, IP67-rated O-ring seal, and flange mounting capability. Designed for industrial applications requiring vibration resistance and environmental protection (-55°C to +125°C operating range), it complies with IEC 61076-2-101/104 standards for reliable power/signal transmission in automation and machinery systems.
Data Overview
| Contacts | 8 |
| Current Rating | 7A |
| Termination | Crimp |
| Locking | Screw |
| Insert | Thermoplastic |
Contact Features
| Version | Ring Nut, Metal |
| Wire Gauge | 0.09 - 0.75mm° (28-20 AWG) |
| Housing | Zinc Die Cast, Nickel Plated |
| Protection | IP67/ 65 (in mated condition) |
| Insertion/Withdrawal Force | 60 N |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
