C091 11T006 000 2 Circular Connectors Flange mount female metal Amphenol
Short Description:

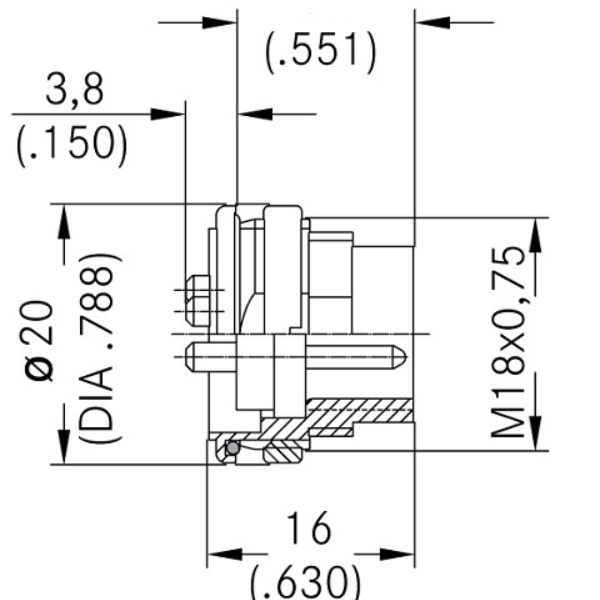

C091 11T006 000 2 – M16 Flange mount female metal receptacle
with O-ring seal and ring nut

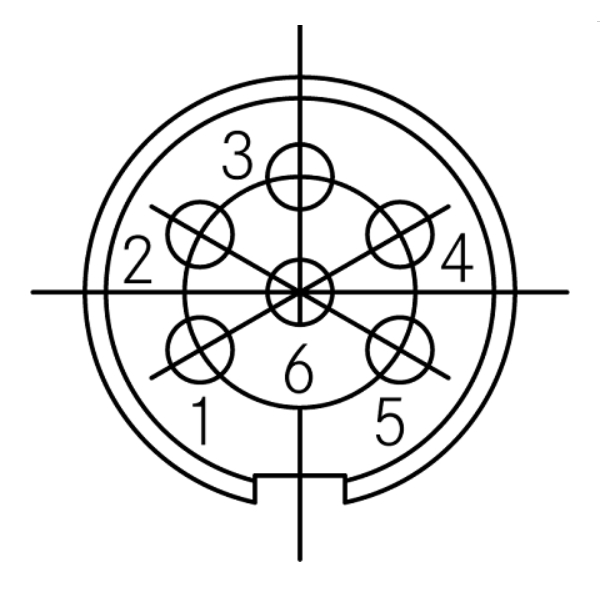

6 contacts
Contacts included
Product Detail
Product Tags
The Amphenol C091 11T006 000 2 is a MIL-SPEC circular connector featuring a nickel-plated brass shell with IP67 sealing. Its 6-pin female configuration supports 7A current rating at 600V AC/DC, with operating temperatures from -65°C to +175°C. Ideal for aerospace and industrial applications requiring vibration-resistant flange mounting.
Data Overview
| Contacts | 6 |
| Current Rating | 7A |
| Termination | Solder |
| Locking | Screw |
| Insert | Thermoplastic |
Contact Features
| Version | Ring Nut, Metal |
| Wire Gauge | 0.09 - 1.0mm² (28-18 AWG) |
| Housing | Zinc Die Cast, Nickel Plated |
| Protection | IP67/ 65 (in mated condition) |
| Insertion/Withdrawal Force | 50 N |
