C091-31D012-201-2Circular DIN Connectors M16 Female cable connectorAmphenol
Short Description:
C091 31D012 201 2 – M16 Female cable connector with internal strain relief and metal locking ring

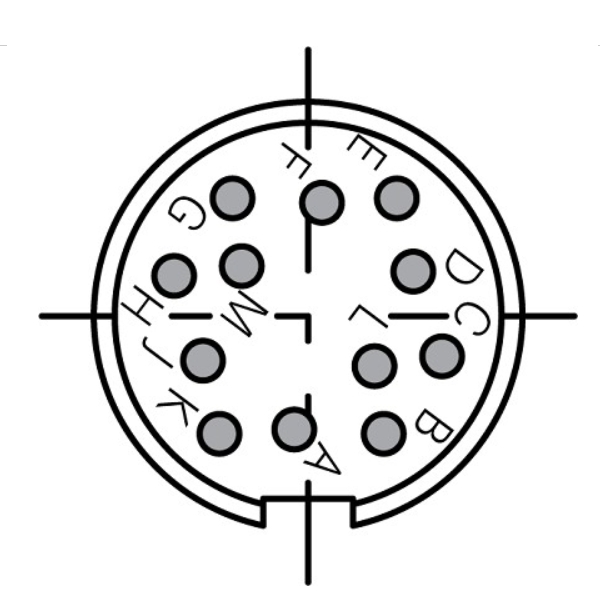

12 contacts
gold plated
6-8mm cable diameter
Contacts included
Product Detail
Product Tags
The Amphenol C091-31D012-201-2 is an M16 female circular connector with 12 solder-cup pins, designed for industrial automation. Its IP67-rated thermoplastic shell and brass nickel-plated contacts ensure reliable performance in harsh conditions (-40°C to +85°C). Rated for 250V/4A per contact, it features a screw-locking mechanism for vibration resistance. Ideal for sensor networks, robotics, and PLC systems requiring compact, high-density connectivity. IEC 61076-2-101 compliant.
Data Overview
| Contacts | 12 |
| Cable Diameter | 6 - 8mm |
| Current Rating | 3A |
| Termination | Solder |
| Locking | Screw |
Contact Features
| Contact Plating | Gold |
| Insert | Thermoplastic |
| Version | Straight; metal |
| Wire Gauge | 0.25 mm² (24 AWG) |
| Housing | Zinc Die Cast, Nickel Plated |
