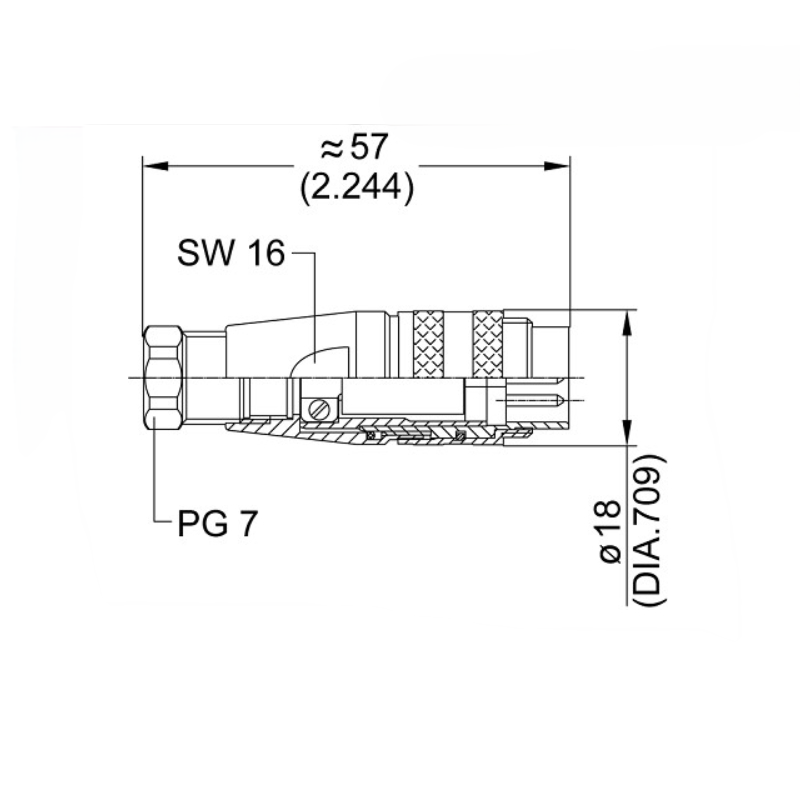

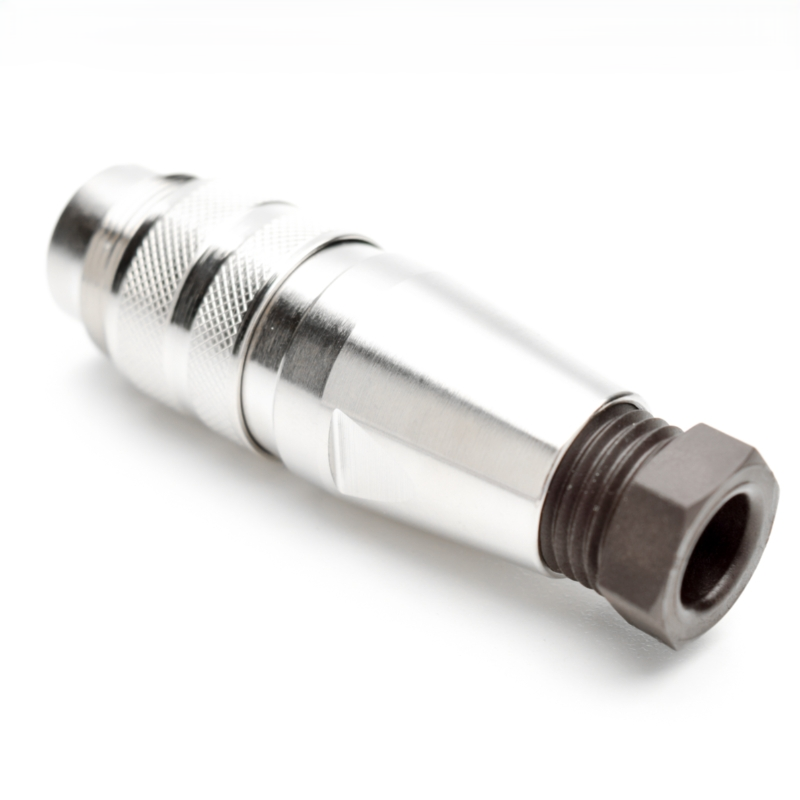

C091 31H008 100 2 Circular DIN Connectors M16 Male cable connector with internal strain relief and metal locking ring Amphenol
Short Description:
C091 31H008 100 2 – M16 Male cable connector
with internal strain relief and metal locking ring

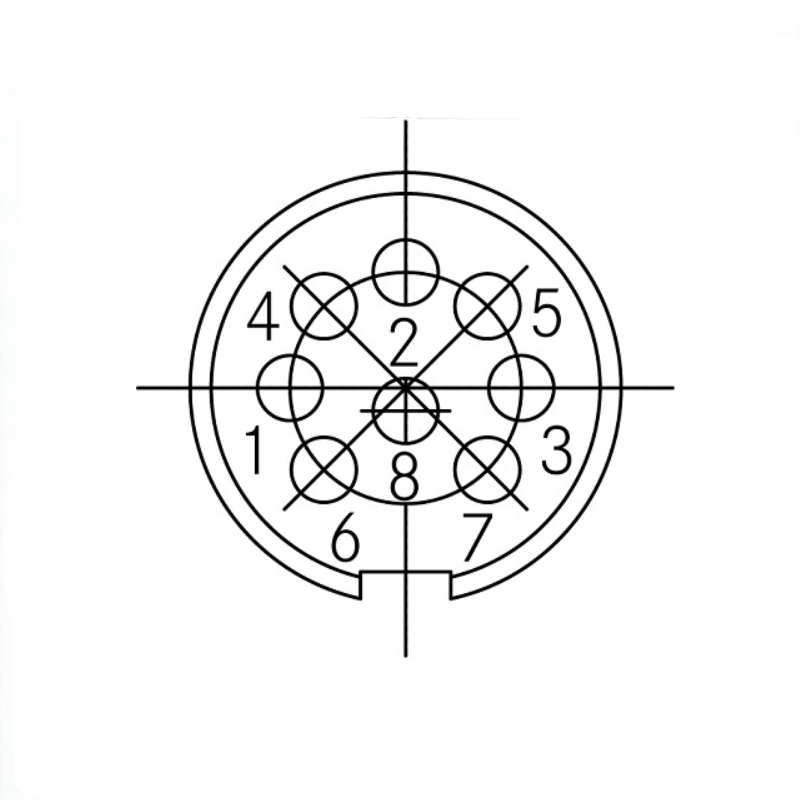

8 contacts
silver plated
4-6mm cable diameter
Contacts included
Product Detail
Product Tags
Amphenol C091 31H008 100 2 Circular DIN Connector
Parameter Value
Manufacturer：Amphenol Corporation (SINE/TUCHEL series)
Model Number：C091 31H008 100 2
Connector Type：8-position male cable plug, M16 circular DIN interface
Locking Mechanism：Metal quick-lock ring for vibration resistance
Strain Relief：Internal design (supports 4-8.5mm cable diameters)
Compliance：Screw-lock standard IEC 61076-2-106 with EMI shielding in mated state
Contact Plating：Silver-plated for reliable signal transmission
Protection: IP67/ 65 (in mated condition)
Operating Temperature: -40°C to +100°C
Insulation Resistance: > 10(10) Ω
Rated Voltage IEC 60664-1: 100V
Rated Voltage per UL 1977: 250V
Data Overview
| Contacts | 8 |
| Cable Diameter | 4 - 6mm |
| Current Rating | 7A |
| Wire Gauge | 0.5 mm² (20 AWG) |
| Protection | IP67/ 65 (in mated condition) |
Contact Features
| Termination | Solder |
| Locking | Screw |
| Contact Plating | Silver |
| Insert | Thermoplastic |
| Version | Straight; metal |
