C091-31S012-200-2Circular Connectors M16 Flange mount male metal receptacle12 contactsAmphenol
Short Description:
M16 Flange mount male metal
receptacle with O-ring seal and ring nut
12 contacts
Contacts included
Product Detail
Product Tags
This industrial-grade 12-pin male metal receptacle features a corrosion-resistant nickel-plated zinc alloy housing with rugged M16 threaded flange mounting, engineered for secure panel installation (1.5–5mm panel thickness). Rated for 300V/5A and compliant with IP68/IP69K standards, it delivers unmatched protection against dust, high-pressure washdowns, and harsh chemicals. The gold-plated brass contacts ensure optimal signal integrity for power/sensor applications in extreme temperatures (–40°C to +125°C). Pre-wired with 24 AWG PVC cables and EMI shielding, it simplifies integration into robotics, CNC machinery, and industrial control
Data Overview
| Contacts | 12 |
| Current Rating | 3A |
| Termination | Solder |
| Locking | Screw |
| Contact Plating | Gold |
Contact Features
| Insert | Thermoplastic |
| Version | Ring Nut, Metal |
| Wire Gauge | 0.25 mm² (24 AWG) |
| Housing | Zinc Die Cast, Nickel Plated |
| Protection | IP67/ 65 (in mated condition) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

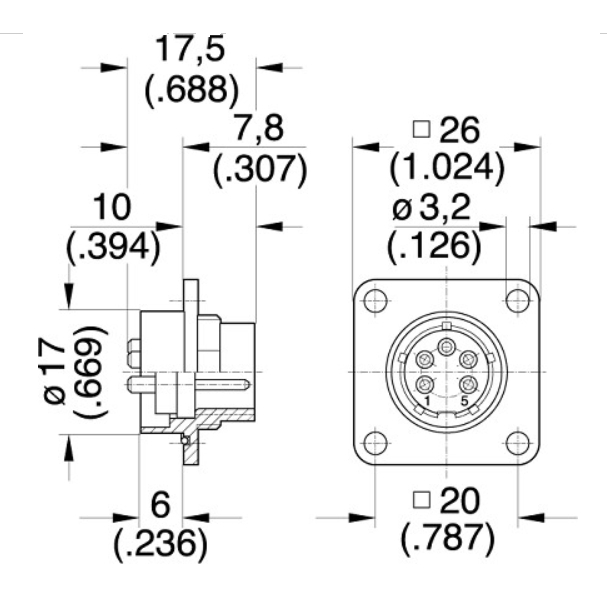

Product Display
