C091-31T014-200-2Connectors M16 Flange mount female metal receptacle Amphenol
Short Description:
C091 31T014 200 2 – M16 Flange mount female metal receptacle with O-ring seal and ring nut
14 contacts
gold plated
Contacts included
Product Detail
Product Tags
The Amphenol C091-31T014-200-2 is a premium industrial-grade M16 circular connector featuring a female receptacle design with robust metal housing. Engineered for demanding environments, this connector utilizes a secure flange mount for reliable panel installation.
Data Overview
| Contacts | 14 |
| Current Rating | 3A |
| Termination | Solder |
| Locking | Screw |
| Contact Plating | Gold |
Contact Features
| Insert | Thermoplastic |
| Version | Ring Nut, Metal |
| Wire Gauge | 0.25 mm² (24 AWG) |
| Operating Temperature | -40°C to +100°C |
| Protection | IP67/ 65 (in mated condition) |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

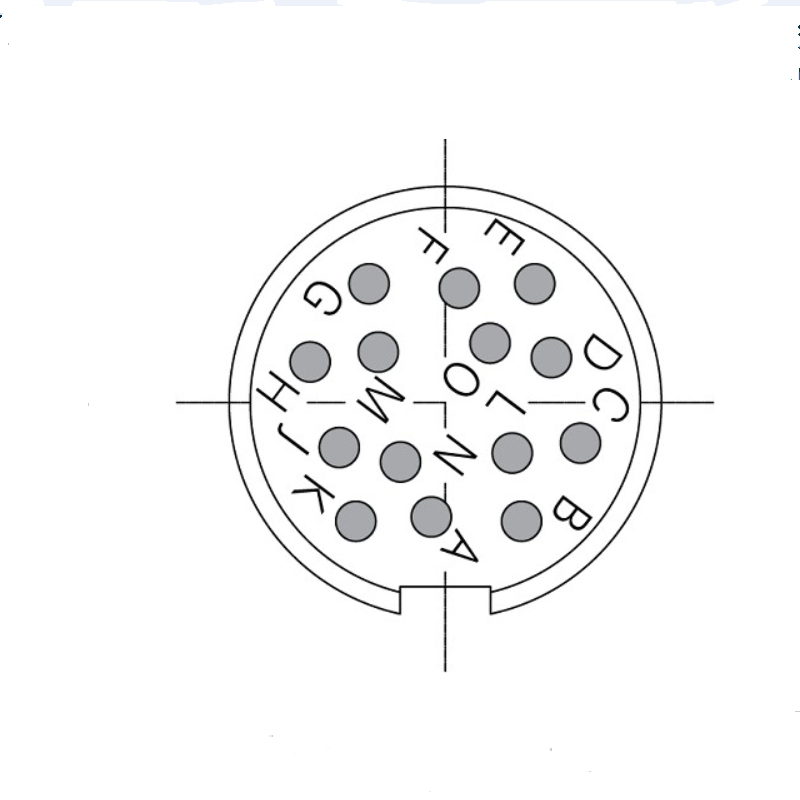

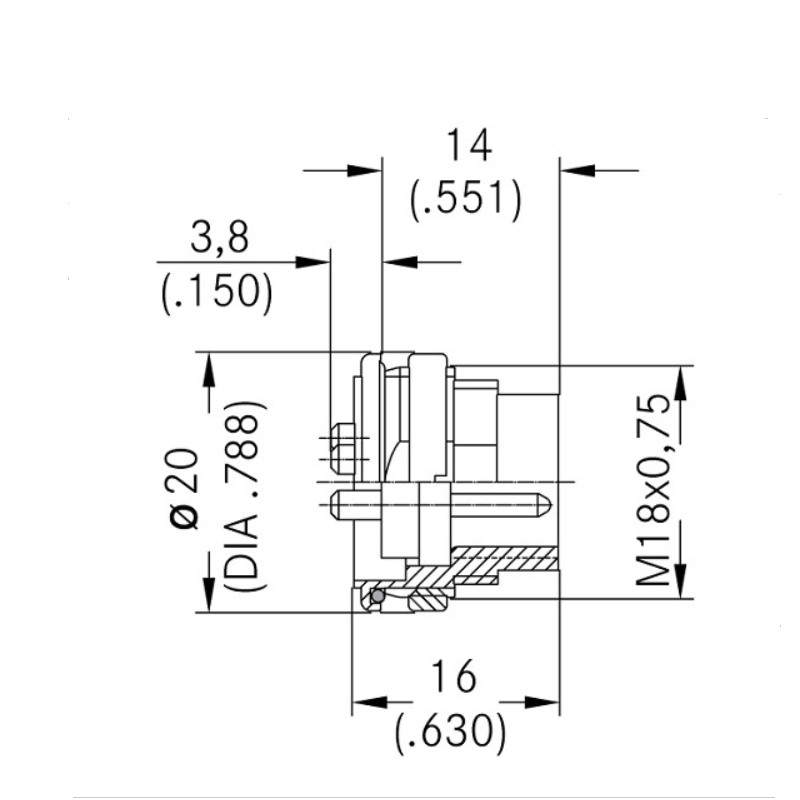

Product Display
