Deutsch ATM04-2P | IP67 Sealed Male 2-Pin Receptacle | 7.5A, 250V | QPL Equivalent Supply
Short Description:
Product Model: Deutsch ATM04-2P
Connector Type: 2-Position Male Receptacle (Plug)
Sealing Rating: IP67 (when mated) for dust and water resistance
Electrical Rating: 7.5A, 250V
Wire Compatibility: 16-22 AWG
Operating Temperature: -55°C to +125°C
Key Feature: QPL (Qualified Products List) Equivalent Supply
Primary Use: Automotive, Industrial, and Harsh Environment Applications
Product Detail
Product Tags
Feature: The Amphenol ATM04-2P is a 2-position male pin receptacle featuring a compact rectangular design. It incorporates a high-grade thermoplastic housing and a dedicated silicone elastomer seal, with a wire range of 16-22 AWG (1.5-0.35mm²).
Advantage: The integrated seal and robust housing work together to achieve a reliable IP67 rating, effectively shielding the connection from moisture, dust, and chemicals. This construction, coupled with a mating cycle durability of over 100, ensures stable performance and long-term reliability in demanding settings, including exposure to wide temperature fluctuations (-55°C to +125°C).
Benefit: You gain a connection solution that minimizes downtime and maintenance needs in challenging applications like automotive wiring or industrial controls. This translates to enhanced end-product reliability, reduced lifetime costs, and consistent performance where it matters most.
Data Overview
| Specification Category | Detail |
|---|---|
| Product Model | ATM04-2P |
| Connector Type | Receptacle |
| Gender | Male |
| Number of Positions | 2 |
| Contact Type | Pin |
| Contacts Included | No |
| Contact Size | 20 |
| Current Rating | 7.5 A |
| Voltage Rating | 250 V |
| Wire Range | 16-22 AWG (1.5-0.35mm²) |
| IP Rating | IP67 (in mated condition) |
| Housing Material | Thermoplastic |
| Seal Material | Silicone Elastomer |
| Seal Diameter Range | 1.35mm (.053") - 3.05mm (.120") |
| Operating Temperature | -55°C to +125°C |
| Mating Cycle Durability | >100 |
| Color | Grey |
| Shape | Rectangular |
| RoHS Compliant | Yes |
| Wedge Part# | AWM-2P |
| Mating Part(s)* | ATM06-2S* Plug |
| Dielectric Withstanding Voltage | 1500 V AC |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

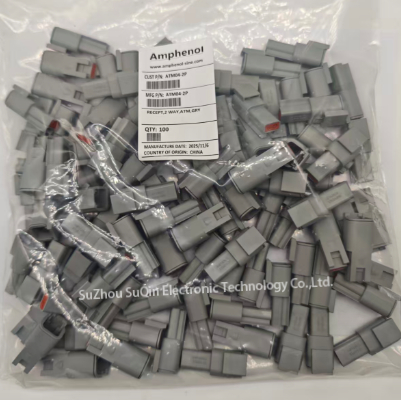

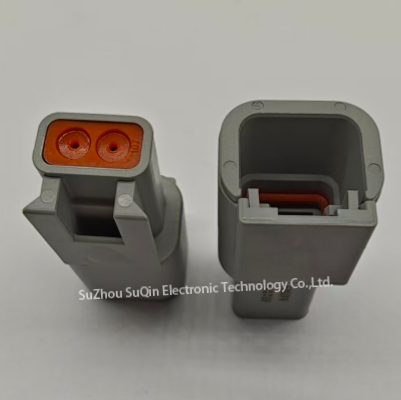

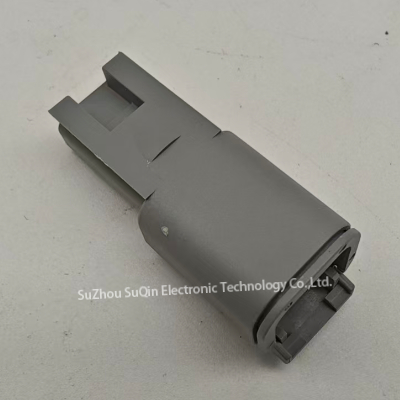

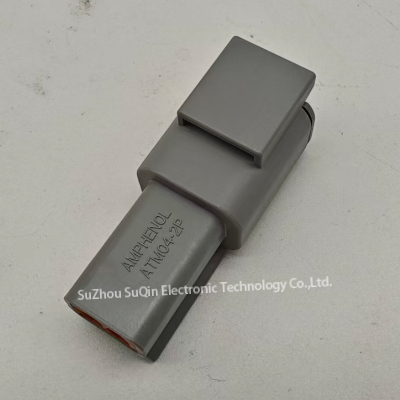

Product Display
