High quality Multilock Connector System173631-1 Automotive terminal plug
Short Description:
Model number：173631-1
Brand：TE
Wire diameter：16 AWG
Product category：automotive terminal
Male/Female : Female
Unit price：Contact us for latest quotation
Product Detail
Product Tags
Manufacturer:TE Connectivity
Product Model：173631-1
Terminal Type : Receptacle
Interface Plating : Tin (Sn)
Wire Contact Termination Area Plating Material :Tin
Wire Size Range：20-16 AWG (0.5-1.25 mm²)
Termination Method：Crimp
Contact Type：Socket (Female)
Current Rating ：10A
Operating Temperature：-30°C to +105°C
Mating Tab Width：1.8 mm (.071 in)
Tab Thickness：0.64 mm (.025 in)
Contact Material：Brass
Mounting Style：Free Hanging
Mounting Angle：Straight
Voltage Rating ：2V-8V
Data Overview
| Terminal Type | Receptacle |
| Wire Size (AWG) | 20 – 16 |
| Wire Size (mm²) | .5 – 1.25 |
| Mating Tab Width | 1.8 mm [ .071 in ] |
| Interface Plating | Tin (Sn) |
Contact Features
| Wire Contact Termination Area Plating Material | Tin |
| Contact Fabrication | Stamped & Formed |
| Contact Size | 1.8mm |
| Crimp Type | F-Crimp |
| Typical Current Rating (A) | 10 |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

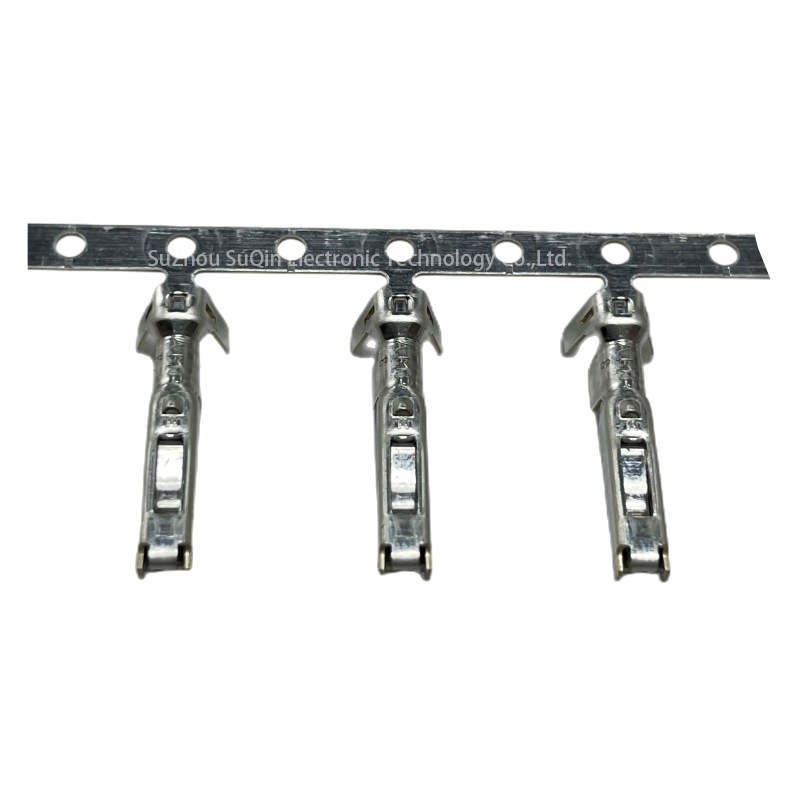

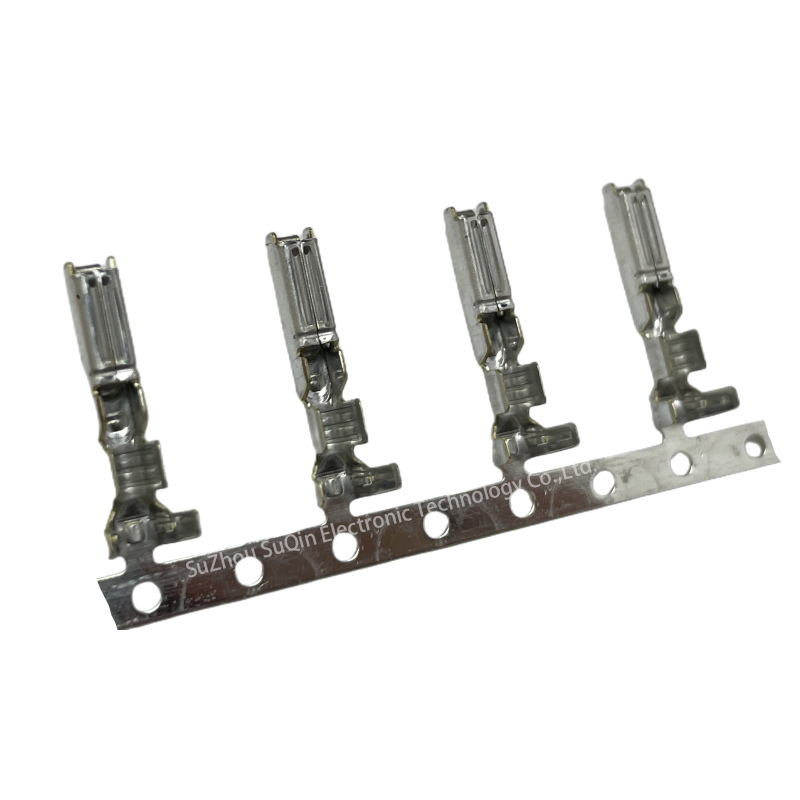

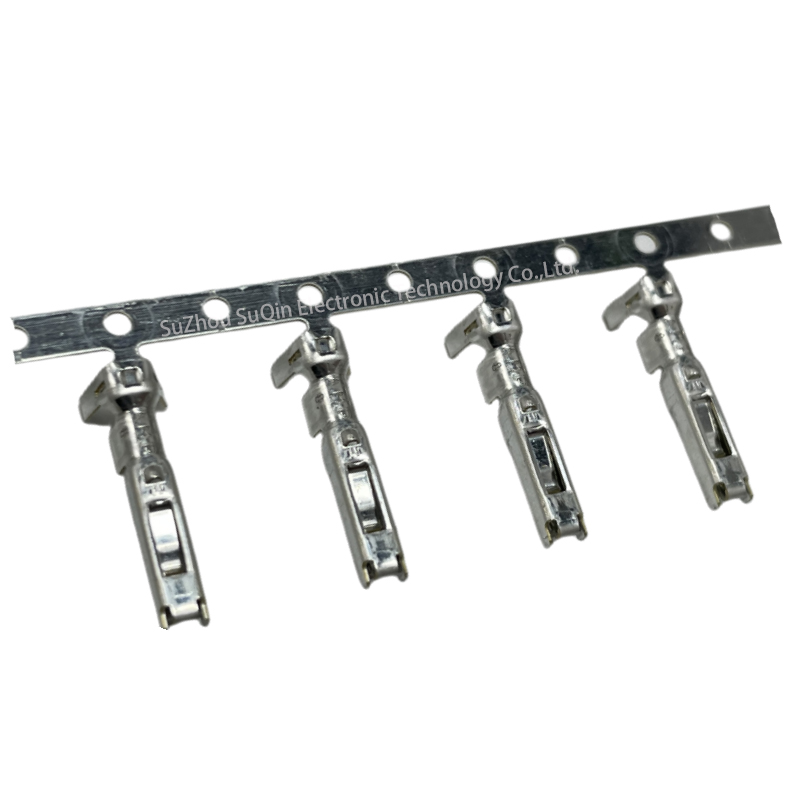

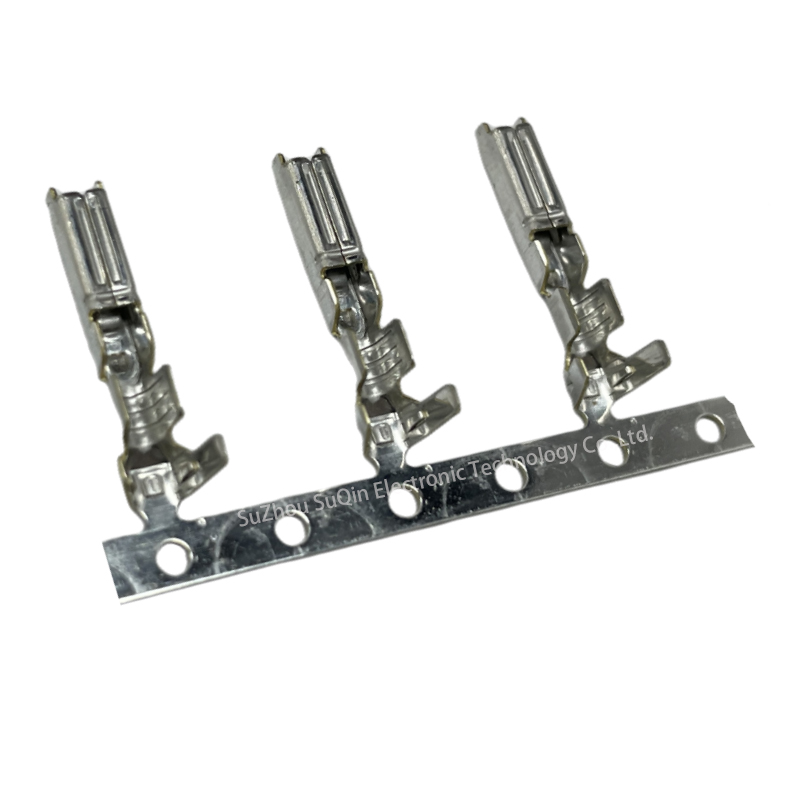

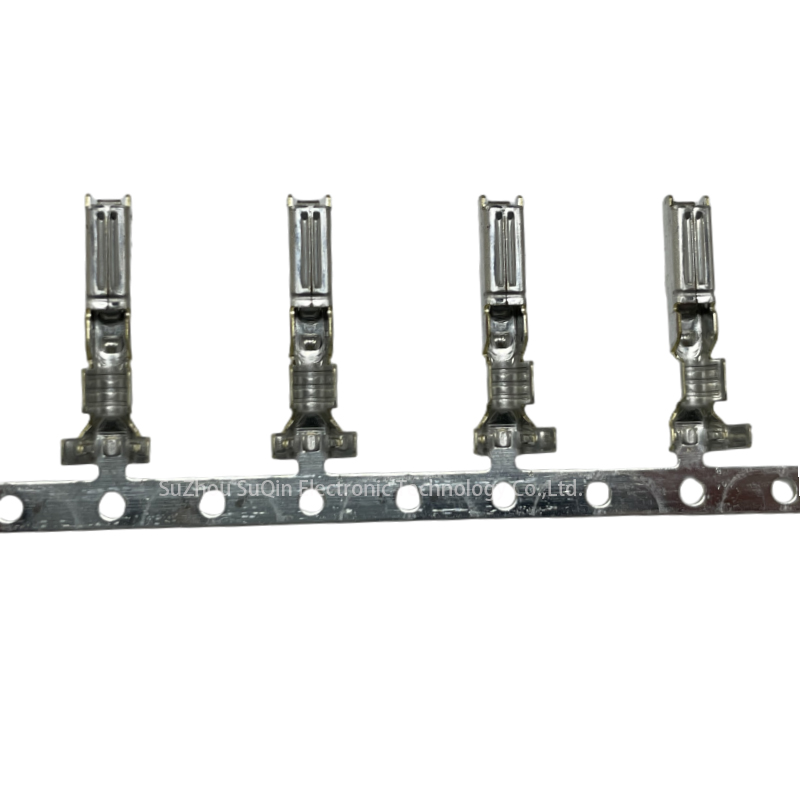

Product Display
