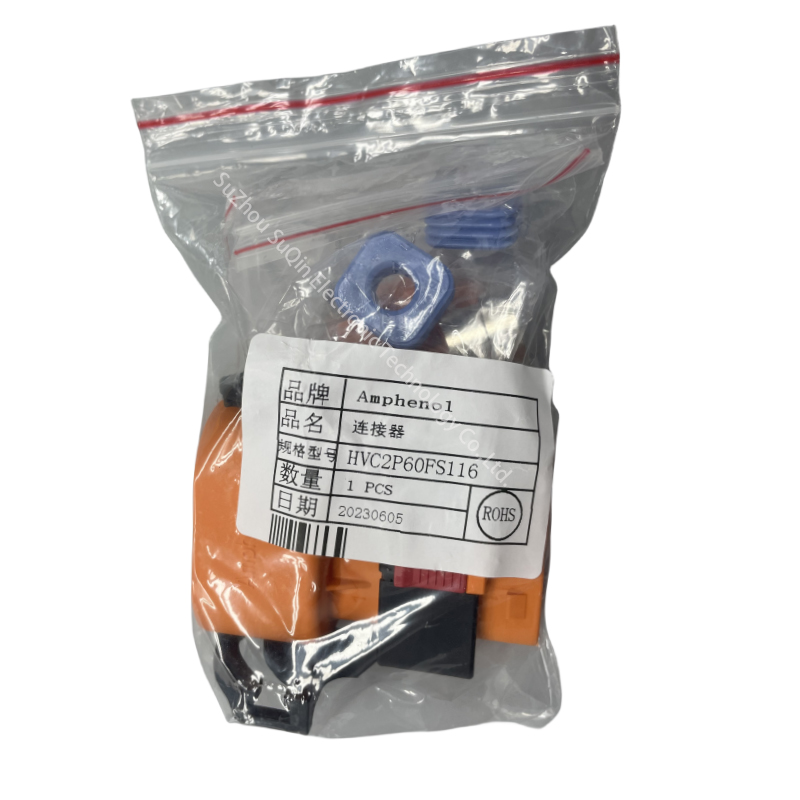

HVC2P60FS116 Plastic Connector Plug for New Energy
Short Description:
Description:female cable connector; 2 pole; angled; A-coded
Number of positions (w/o PE):2
Rated voltage:1000 (V)
Rated current (40 °C):180 (A)
IP-class mated:IP69k
Availability: 150 in Stock
Min. Order Qty: 1
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Application
EV/HEV High Voltage Sealed Connector, 125A, 800V
Performance:
| Tensile strength | 100N |
| Rated voltage: | 800V DC Max |
| Protection class | IP67, IP6K9K |
| Mating endurance | 50 cycles Min |
| Insulation Material | PA66-GF；Copper Alloy |
| Operating Temperature | -40℃～125℃ |
