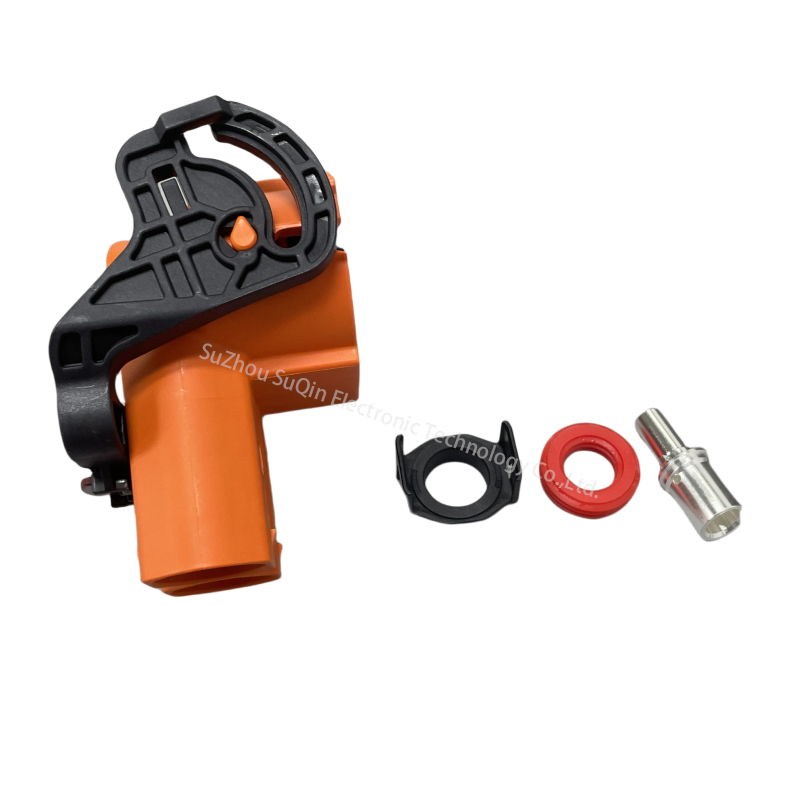

HVSL800082B135 High voltage cable auto connector
Short Description:
Description:female cable connector; 2 pole; angled; B-coded; 35,00mm²; with HVIL
Number of positions (w/o PE):2
Rated voltage:1000 (V)
Rated current (40 °C):180 (A)
IP-class mated:IP69k
Availability: 4800 in Stock
Min. Order Qty: 1
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Amphenol HVSL800082B135 High-Voltage Automotive Connector。
Parameter Specification
Series：Excel Mate S HVSL800 Series
Configuration：2-Position Connector
Current Rating ：180A Continuous
Voltage Rating ：600V DC
Sealing Level：IP67 Dust/Waterproof
Termination：Crimp Pin Contacts
Housing Material：Thermoplastic (Orange)
Locking Mechanism：Dual-stage CPA
Dimensions：80.9mm (Width) × 59.7mm (Depth)
Operating Temp：-40°C to +125°C
Data Overview
| contact diameter | 8.0mm |
| IP-class mated | IP69K |
| number of positions (w/o PE) | 2 |
| termination | crimp |
| gender | female |
Contact Features
| high voltage interlock | yes |
| Rated current (40 °C) | 180 (A |
| Rated voltage | 1000 (V) |
| upper temperature | 125 GC |
| lower temperature | -40 GC |
