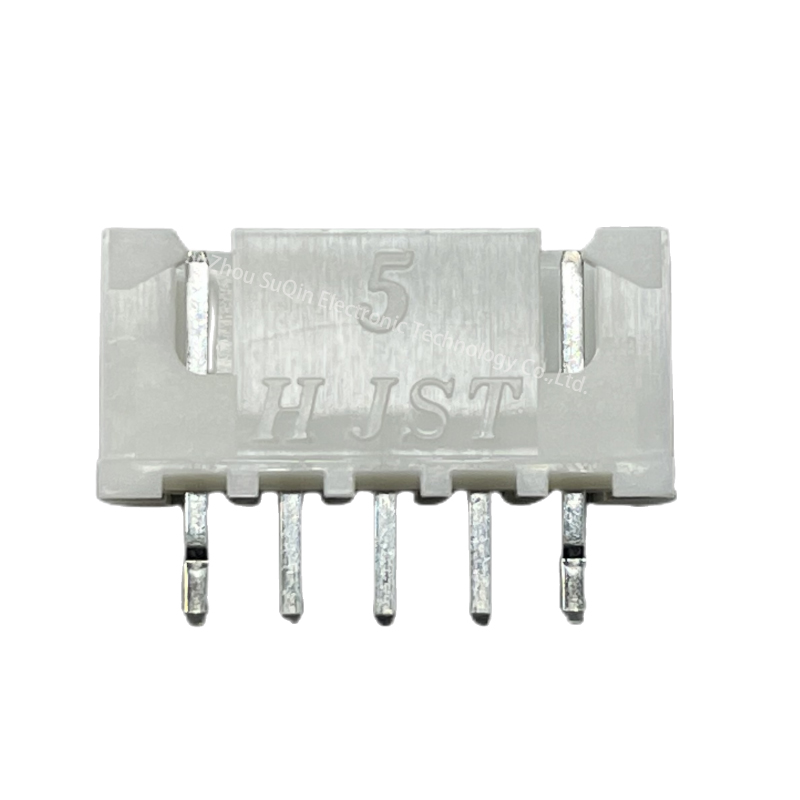

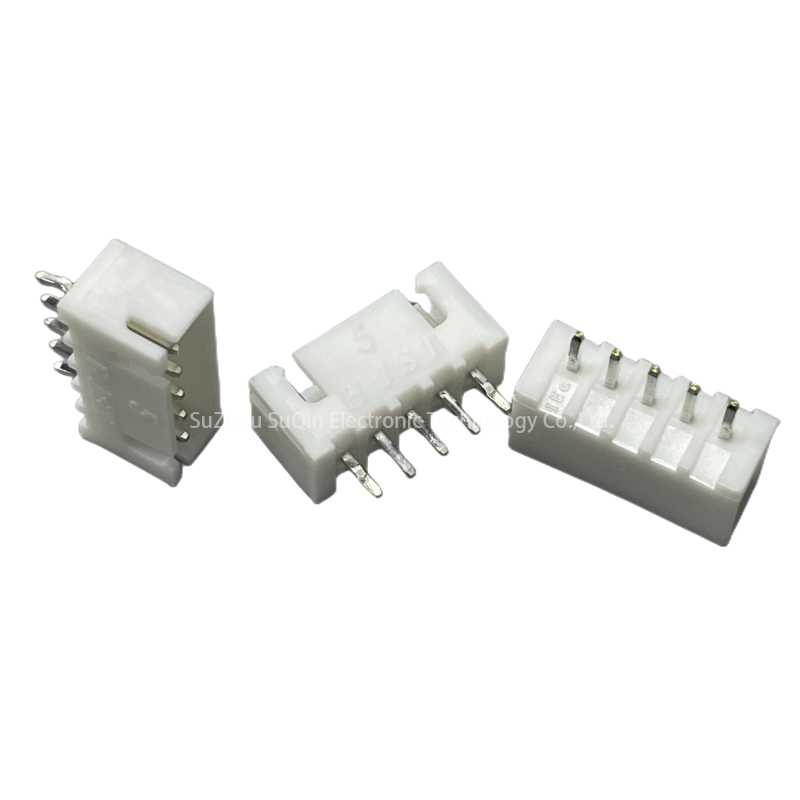

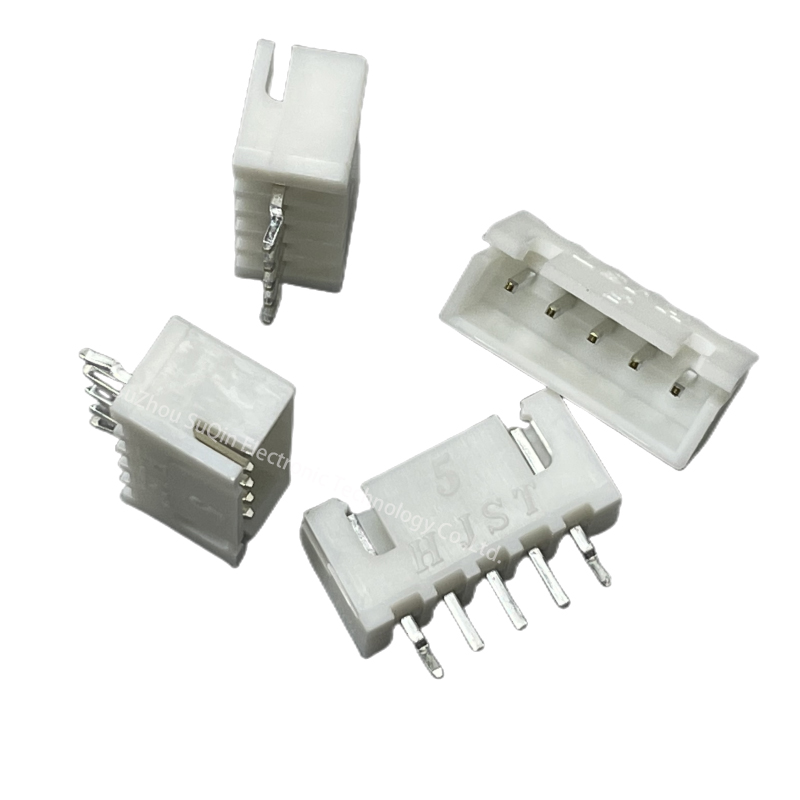

JST XH 5 pin Connector header 2.5mm pitch connector B5B-XH-A
Short Description:
Model number：B5B-XH-A
Brand：JST
Application:PCB
Type:BNC, Contact Connector
operating temperature：-25℃-+85℃
Unit price：Contact us for latest quotation
Product Detail
Product Tags
JST B5B-XH-A is a 5-pin 2.5mm pitch PCB header with vertical orientation, rated for 3A/250V. Its nylon 66 housing (UL94V-0) ensures secure mating with XH receptacles like SXH-001T-P0.6. Key features include self-alignment design, wave solder compatibility (260°C), and counterfeit-resistant laser markings. Ideal for Arduino shields and drone battery packs.
Data Overview
| Number of Positions | 5 |
| Number of Rows | 1 |
| Contact Type | Male Pin |
| Series | XH |
| Packaging | Bulk |
Contact Features
| Insulation Color | Natural |
| Current Rating (Amps) | 3A |
| Voltage Rating | 250V |
| Material Flammability Rating | UL94 V-0 |
| Operating Temperature | -25°C ~ 85°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.
Product Display
