MOLEX42816-0512:10.00mm Pitch Mini-Fit Sr. Receptacle Housing, Single Row, 5 Circuit, Black
Short Description:
Part Number: 42816-0512
Series Number: 42816
Product Family: Mini-Fit Sr. Connectors
Category ：Connector Housings
Product Name：Mini-Fit Sr.
Application：Power, Wire-to-Board, Wire-to-Wire
Product Detail
Product Tags
Manufacturer：MOLEX
Part Number: 42816-0512
Pitch：10.00mm (standard spacing for high-density connections)
Circuits：5 (single-row design)
Current Rating：Up to 50.0A per contact (12-10 AWG wire compatible)
Voltage Rating ：600.0V (UL/IEC compliant)
Housing Material：High-temperature polyester (PET), black (UL 94 V-0 flame retardant)
Termination Type：Compatible with crimp terminals (sold separately, e.g., 12-10 AWG)
Mounting Style：Through-hole (THT) PCB mounting
Operating Temp.：-40°C to +105°C
Compliance：RoHS compliant, halogen-free
Data Overview
| Circuits (maximum) | 5 |
| Flammability | 94V-0 |
| Number of Rows | 1 |
| Pitch - Mating Interface | 10.00mm |
| Color - Resin | Black |
Contact Features
| Gender | Receptacle |
| Material - Resin | Polyester |
| Packaging Type | Bag |
| Stackable | No |
| Temperature Range - Operating | -40° to +105°C |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

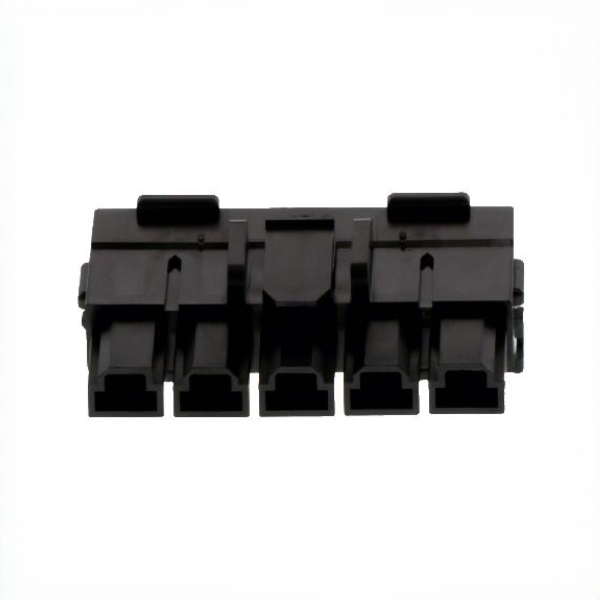

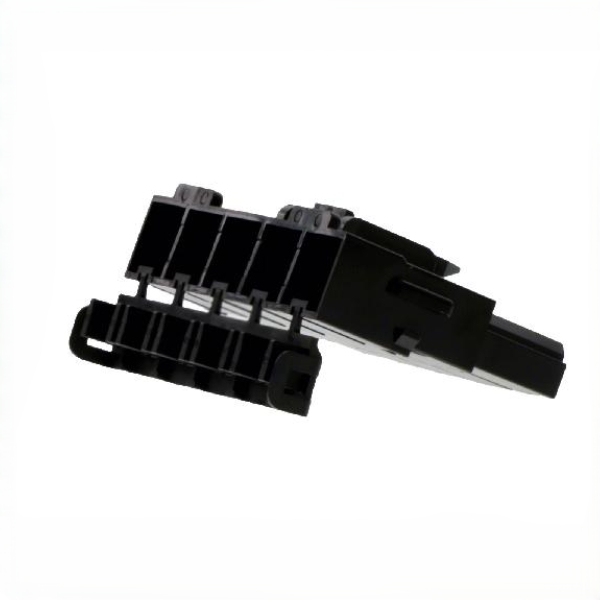

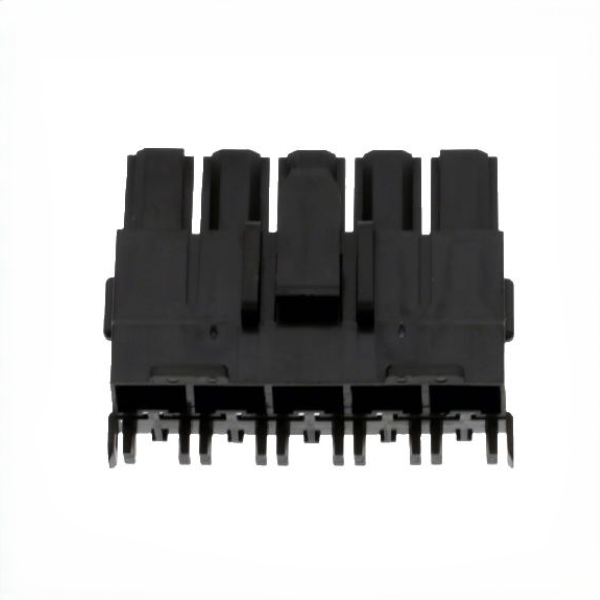

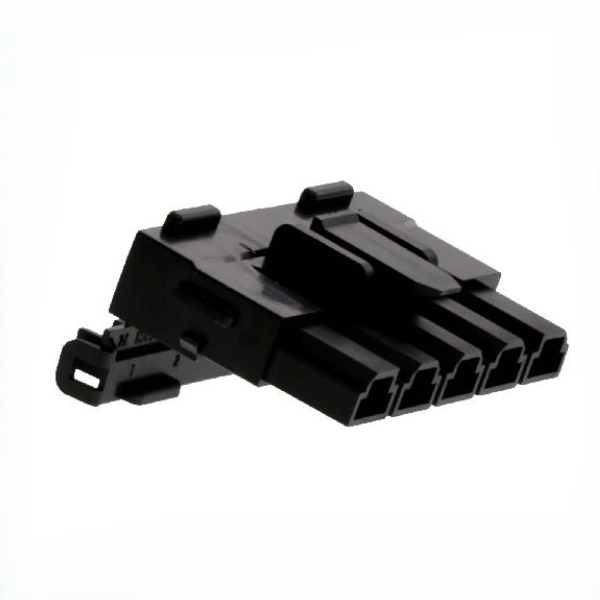

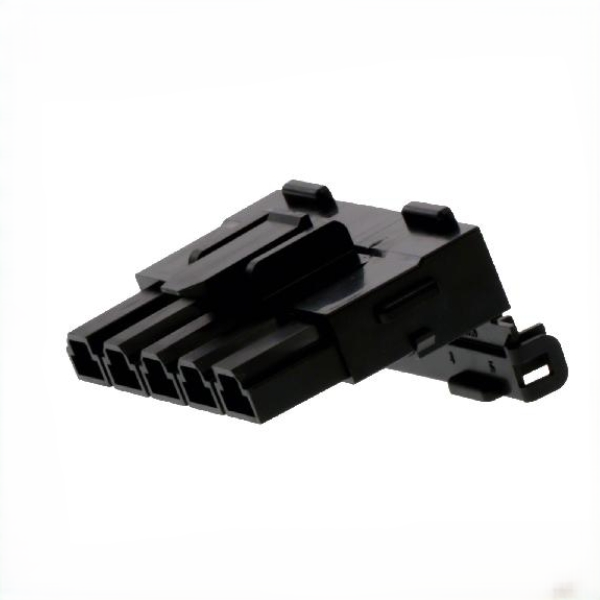

Product Display
