MX80P10K4F1Automotive Connectors(Compact Waterproof Automotive In-line Connector) MX80 SeriesJAE
Short Description:
In-line Connector for Automotive Applications
USCAR-2 and LV214
ISO/JASO/EWCAP/VDA standard 0.64 mm tab size Terminal Position Assurance (TPA) on pin
IPX7 Waterproof
Applicable wire size: 0.3 to 0.5 mm
Product Detail
Product Tags
Designed for automotive excellence, the JAE MX80P10K4F1 from the MX80 Series offers a robust, space-saving solution for modern vehicle systems. This compact connector features industrial-grade waterproofing (IP67/IP6K9K), ensuring reliable performance in harsh environments with resistance to water, dust, vibration. Its low-resistance terminals guarantee stable power and data transmission, while the durable, RoHS/REACH-compliant construction (nylon/PBT) meets global automotive standards for safety and sustainability.
Data Overview
| Manufacturer | JAE Electronics |
| Product | Terminals |
| Gender | Pin (Male) |
| Mounting Style | Cable Mount / Free Hanging |
| Termination Style | Crimp |
Contact Features
| Contact Plating | Tin |
| Wire Gauge Min | 22 AWG |
| Wire Gauge Max | 20 AWG |
| Series | MX80 |
| Contact Material | Copper Alloy |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

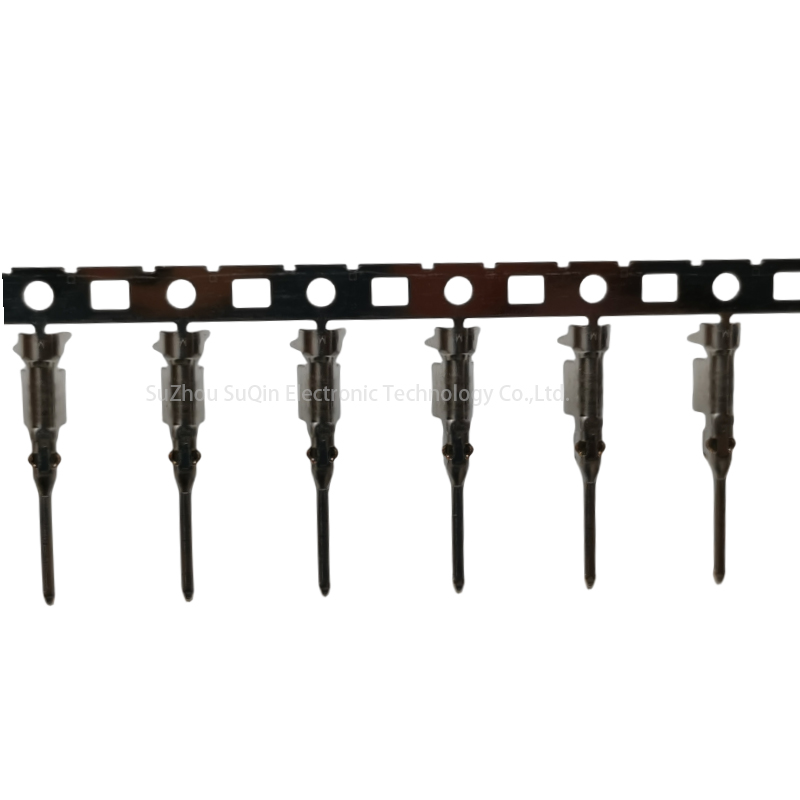

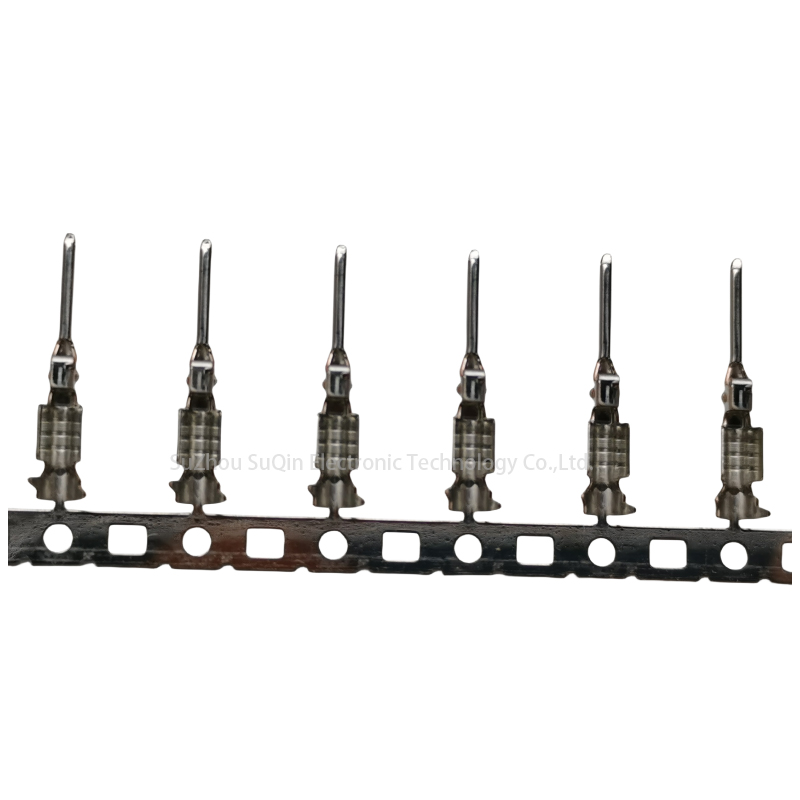

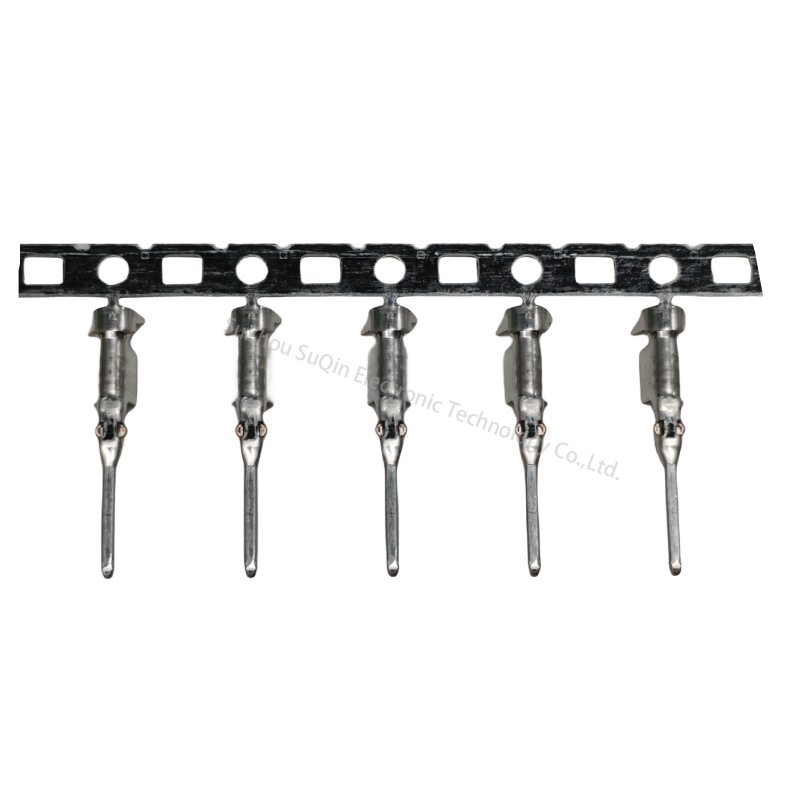

Product Display
