RT06188PNHEC03 Standard Circular Connectors 8 Position Plug, Male, Shell Size 18, with Silicone Seal, and End Cap Amphenol
Short Description:
Manufacturer: Amphenol
Product Category: Standard Circular Connector
Number of Positions: 8 Position
Contact Gender: Pin (Male)
Shell Size: 18
Termination Style: Crimp
Shell Material: Zinc
Accessory Type: Plug
IP Rating: IP67
Product Detail
Product Tags
Manufacturer: Amphenol
Product Category: Standard Circular Connector
Product Model：RT06188PNHEC03
Connector Type：Male Plug
Positions：8
Shell Size：18
Sealing：Silicone (IP67-rated)
End Cap：Included
Material：Metal shell, silicone seal
Plating：Gold or tin (per variant)
Current Rating ：30A (reference)
Voltage Rating ：1000V AC (1 min.)
Temperature Range：-40°C to +125°C
Data Overview
| Male/Female | Male |
| Shell Size | 18 |
| Number of Contacts | 8 |
| Contact Pin/Socket | Pin |
| Contact Size | 2.5 mm |
Contact Features
| Contact Type | O-Ring Seal |
| Current Rating | 23 A |
| Housing Material | Zinc Alloy |
| Voltage Rating | 500 V |
| Wire Gauge | 14 AWG to 12 AWG |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

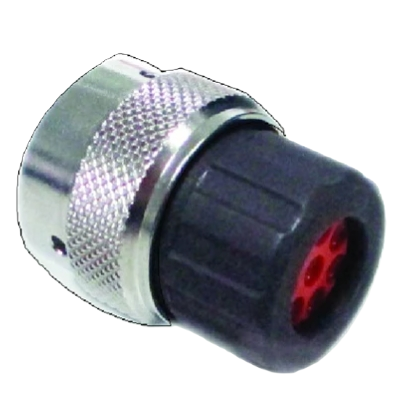

Product Display
