RT0W6106PNHEC03 Standard Circular Connector Plug 6 positions, Pin (Male) contacts Amphenol
Short Description:
Model Number: RT0W6106PNHEC03
Manufacturer: Amphenol
Product Type: Standard Circular Connector Plug

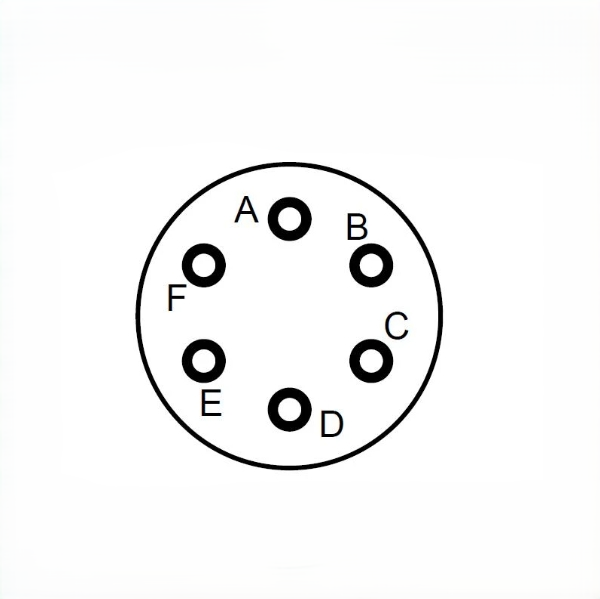

Contact Configuration: 6 positions, Pin (Male) contacts

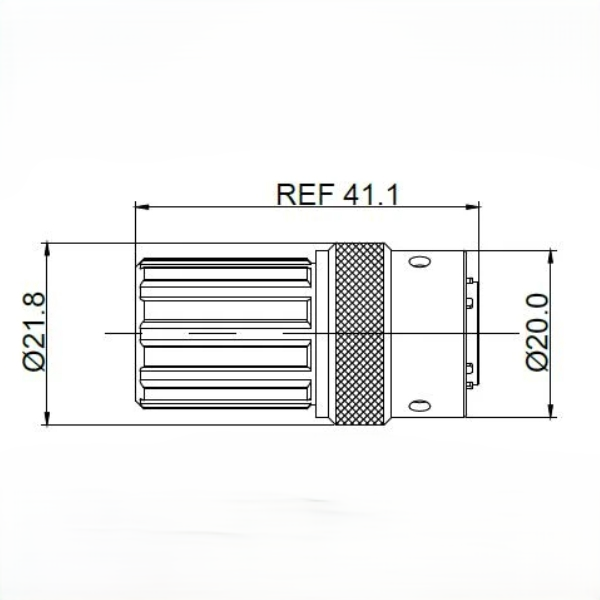

Shell Size: 10
Number of Contacts: 6
Flammability Rating：UL 94 V-0
Product Detail
Product Tags
Manufacturer Part Number: RT0W6106PNHEC03
Type: Standard Circular Connector Plug
Contact Configuration: 6 positions, Pin (Male)
Shell Size: 10
Packaging: Typically supplied in factory packs of 50 units
Current Rating :13A per contact @105°C
Voltage Rating :150V AC/DC
Contact Resistance :≤5mΩ (initial)
Insulation Resistance:≥1000MΩ at 500V DC
Dielectric Strength:1500V AC for 1 minute
Contact Material:Copper alloy with gold plating
Housing Material:Zinc alloy with nickel plating
Sealing Standard:IP67 (dustproof and waterproof)
Temperature Range:-30°C to +125°C
Flammability Rating:UL 94 V-0
Vibration Resistance:10-2000Hz, 15g (MIL-STD-202G)
Shock Resistance:100g, 6ms (MIL-STD-202G)
Mating Cycles：≥100 (minimum)
Wire Size Compatibility：20AWG (with individual rear wire sea
Data Overview
| Shell Size | 10 |
| Number of Contacts | 6 |
| Contact Size | 20 |
| AWG | 20-30 |
| Amperage | 5A |
Contact Features
| Contact Pin or Socket | Pin |
| Contact Type | O-Ring Seal |
| IP Rating | IP67 |
| Salt Spray | 48 H |
| Male or Female | Male |
