RTS718N32P03Conectores Receptacle Amphenol
Short Description:
RTS718N32P03 Receptacle
jam nut
32 positions
size 18
pin contact
silicone rubber seal
Product Detail
Product Tags

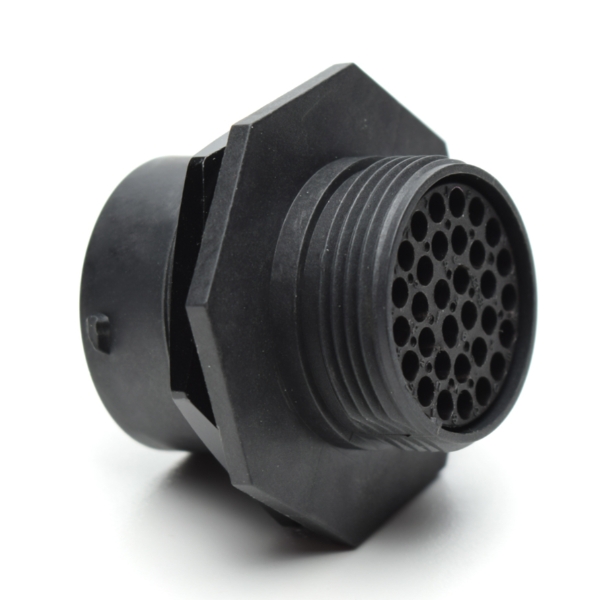

The RTS718N32P03 is a rugged circular connector receptacle designed by Amphenol Sine Systems for demanding industrial environments.
32-position contacts within an 18-size shell housing .
Jam nut panel mounting for secure front-side installation .
Straight receptacle style with female socket interface .
Rated for 250V voltage and 7.5A current capacity .
Threaded coupling mechanism ensuring vibration-resistant connections .
Crimp termination type for reliable wire attachment .
IP67/IP69K-rated ingress protection against dust, water immersion, and high-pressure washdowns .
Operating temperature range: -40°C to +125°C .
Constructed from durable thermoplastic (TP) material with UL94 V-0 flame resistance .
Ships with sealing components (gasket, O-ring, nut) for immediate panel integration .
Contacts sold separately (not included) .
Designed for ≥500 mating cycles .
Data Overview
| Shell Size | 18 |
| No. of Contacts | 32 |
| Contact Pin or Socket | pin |
| Contact size | 20 |
| Amperage | 5A(stamped) or 7.5A (machined) |
Contact Features
| Volt | 250 |
| IP Rating | IP67 / IP69k (in mated condition) |
| Salt Spray | >500h |
| Gender | Male |
| Temperature Range | -40 to 125°C |
