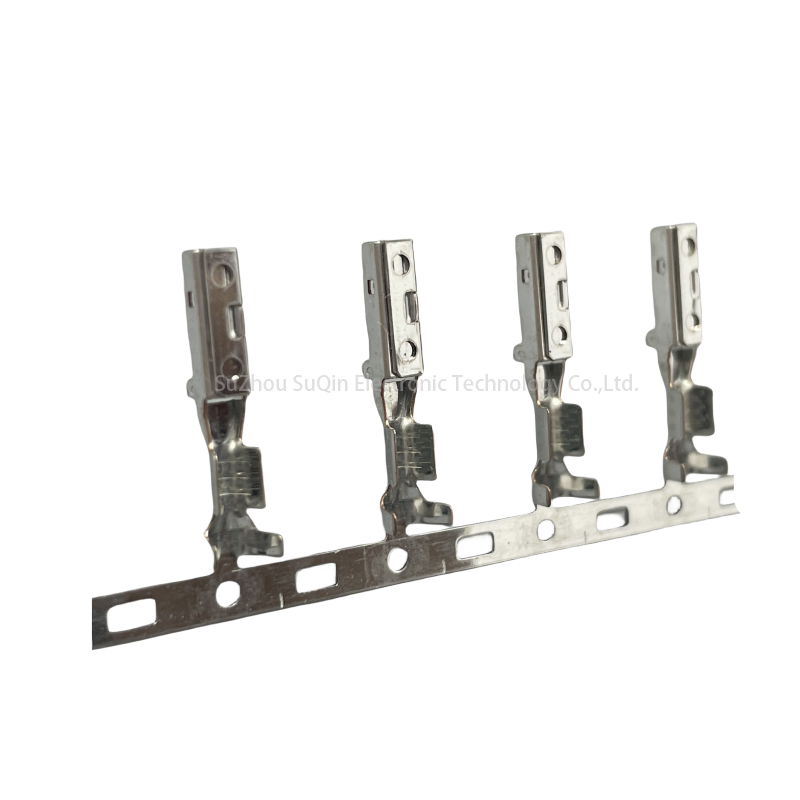

ST730776-3 terminals Non-Insulated Electric Wire Connectors
Short Description:
Description:ASC series, female terminals, wire diameter range 16-18AWG, phosphor bronze, pre-tinned, non-waterproof
Rated current :10(A)
Wire diameter: avss 0.85~1.25, civus 0.35+0.35
Availability: 50000 in Stock
Min. Order Qty: 20
Standard Lead Time When No Stock: 140 days
Product Detail
VIDEO
Product Tags
Application
Mainly used in the automotive field and is suitable for low-frequency applications. Suitable for use in automotive environments, such as connections between vehicle electronic control units, sensors, and actuators.
General Feature
| Series | 090 III (ASC) SERIES |
| Material Type | Phosphor Bronze |
| Dimensions |
19.0*2.4*2.5 |
Physical Feature
| Plating | Pre-Tin |
| Sealed | NO |
| Primary Locking Type |
HSG Lance |
| Terminal Type | Straight-Side |
