TE Connectivity/AMP170342-1：Quick Disconnect Receptacle, Uninsulated,20 – 14 AWG
Short Description:
Quick Disconnect Receptacle
Uninsulated
20 – 14 AWG
.51 – 2.08 mm² Wire
6.35 mm [.25 in] Tab Width
F-Crimp
Straight
Brass
FASTON 250
Product Detail
Product Tags
TE Connectivity/AMP 170342-1 Quick Disconnect Receptacle
Product Type: Quick Disconnect Receptacle (Female)
Wire Range: 20 – 14 AWG
Tab Width: 0.250" (6.35 mm)
Terminal Material: Brass (unplated)
Insulation: Uninsulated
Mounting Type: Crimp
RoHS Compliance: Yes (Lead-free)
Moisture Sensitivity Level (MSL): 1 (Unlimited)
Temperature Range: -40°C to +105°C
Current Rating: Up to 15A (depending on wire gauge)
Voltage Rating: 300V AC/DC
Data Overview
| Quick Disconnect Terminal Type | Receptacle |
| Wire Size (AWG) | 20 – 14 |
| Wire Size (mm²) | .51 – 2.08 |
| Mating Tab Width | 6.35 mm [ .25 in ] |
| Mating Tab Thickness | .61 mm [ .024 in ] |
Contact Features
| Terminal Orientation | Straight |
| Contact Base Material | Brass |
| Terminal Plating Material | Unplated |
| Crimp Type | F-Crimp |
| Barrel Type | Open |
Our advantage
● Brand supply diversification,
Convenient one-stop shopping
● Covers a wide range of fields
Automobile, electromechanical, industrial, communication, etc.
● Complete information, fast delivery
Reduce intermediate links
● Good after-sales service
Quick response, professional reply
● Original genuine guarantee
Support professional consultation
● After-sales problems
Ensure that the imported original products are genuine. If there is a quality problem, it will be solved within one month of receiving the goods.

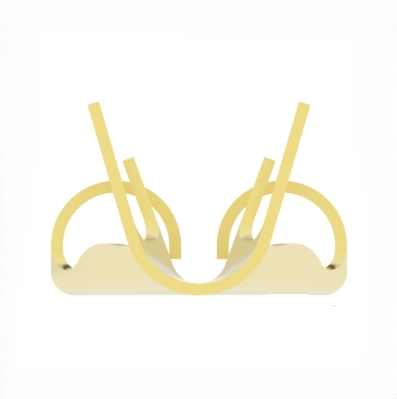

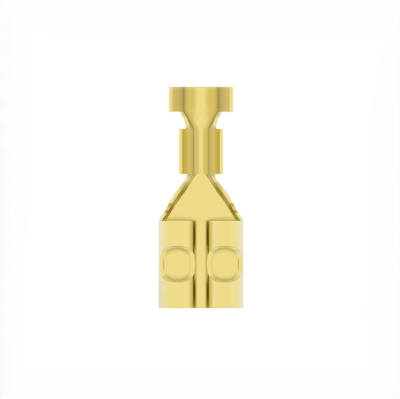

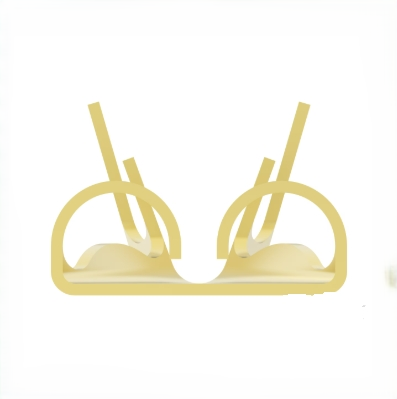

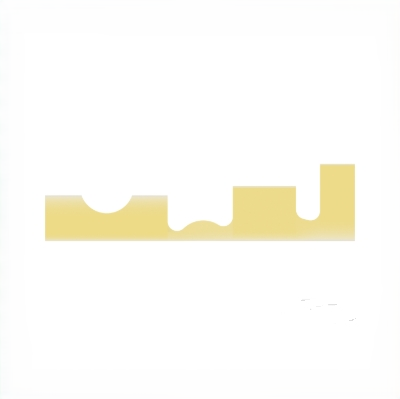

Product Display
