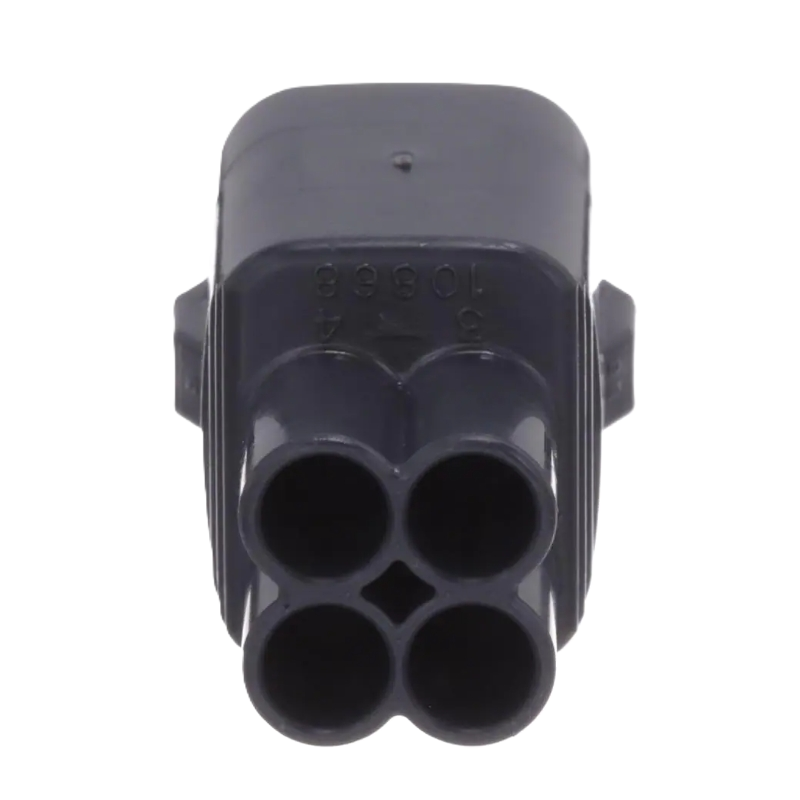

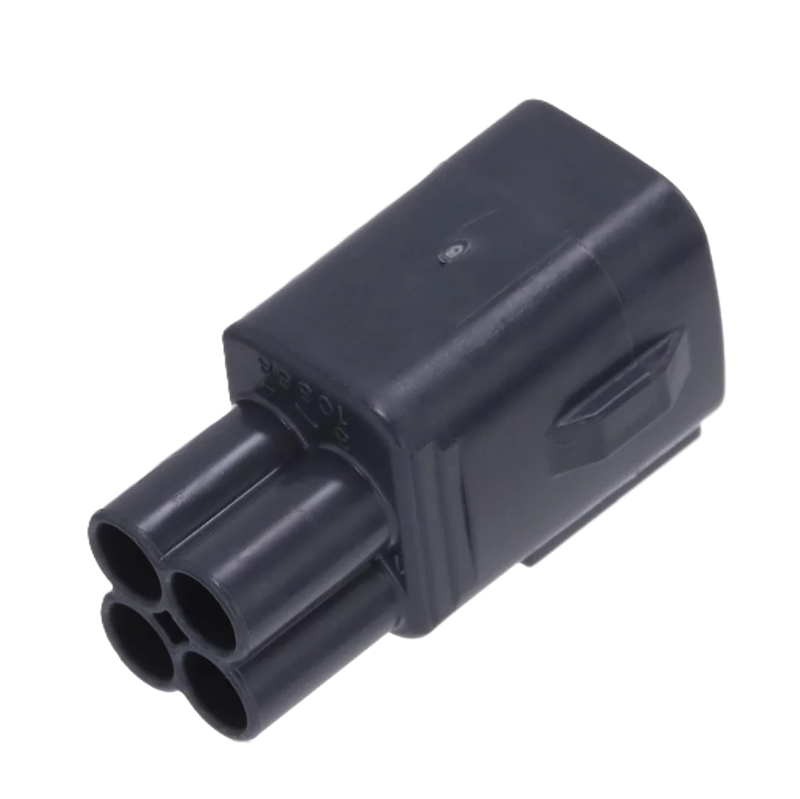

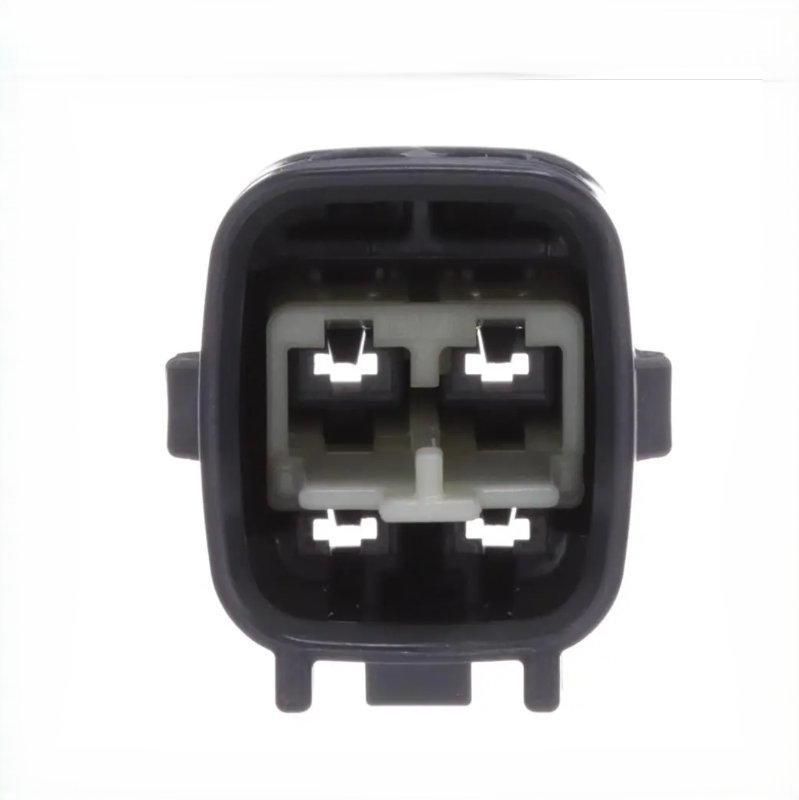

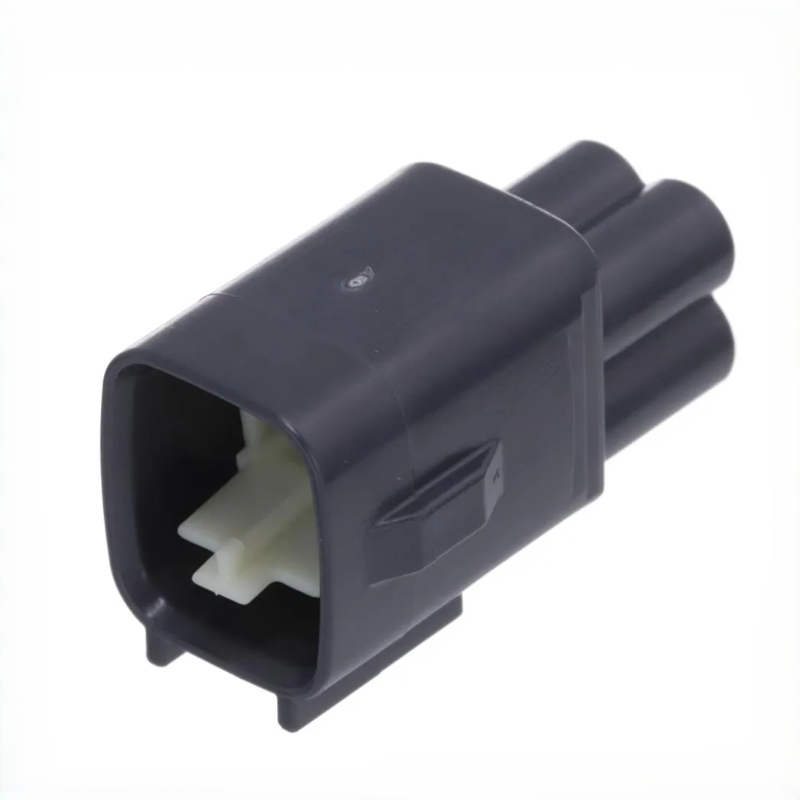

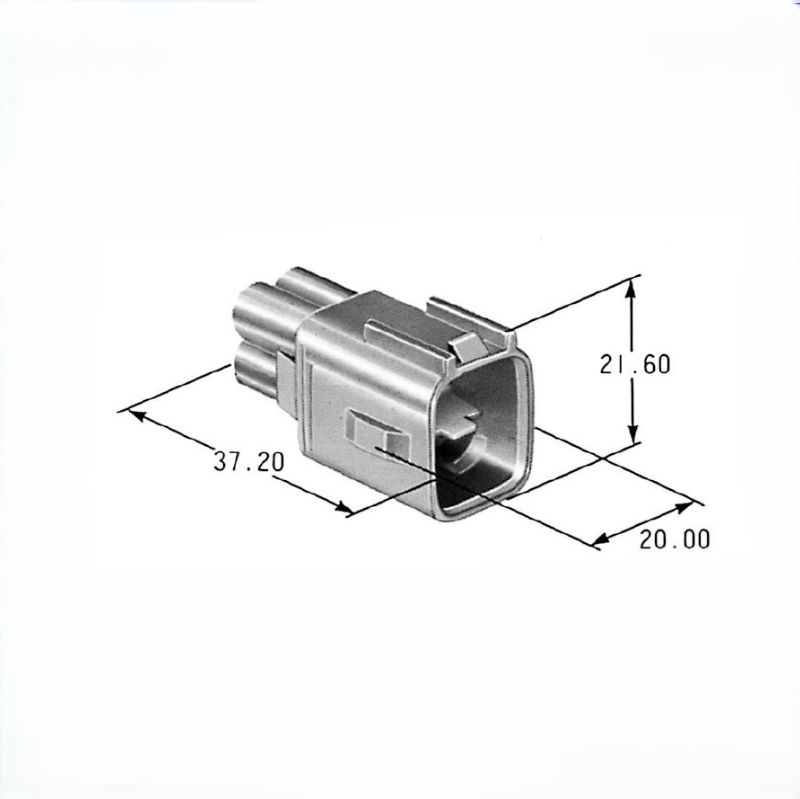

Yazaki 7282-7040-10:2.3II(090II) Connector Housing 4P Male
Short Description:
Yazaki Part Number:7282-7040-10
Manufacturer:Yazaki
Product Category: Automotive Connectors
Product: Housings
Number of Positions:4 Position
Gender:Plug (Male)
Mounting Style:Cable Mount / Free Hanging
Termination Style: Crimp
Color:Gray (Dark Gray)
Application:Wire-to-Wire
Product Detail
Product Tags
Manufacturer:Yazaki
Yazaki Part Number:7282-7040-10
Product: Housings
Connection Type：Wire-to-Wire
Sealing：Unsealed
Pole Count：4 (Male)
Tab Width：2.3mm (0.090 inches)
Material：Heat-resistant nylon
Color:DARK GRAY
Current Rating ：10A (Reference)
Contact Resistance ：≤3mΩ (Initial)
Insulation Resistance：≥100MΩ (500VDC)
Voltage Withstand：1000V AC (1 minute)
Temperature Range:-40 to 120deg.C
Data Overview
| Classified Parts | Housing |
| Number of Poles | 4 |
| Male/Female | Male |
| Tab size (mm) | 2.30 |
| Materials | HPA |
Contact Features
| Family | 2.3II(090II) Connector |
| Connection Type | Wire Harness Connector |
| Unsealed/Seald | Sealed |
| Color | DARK GRAY |
| Allowable Current(Ref.) | 10A(Ref) |
