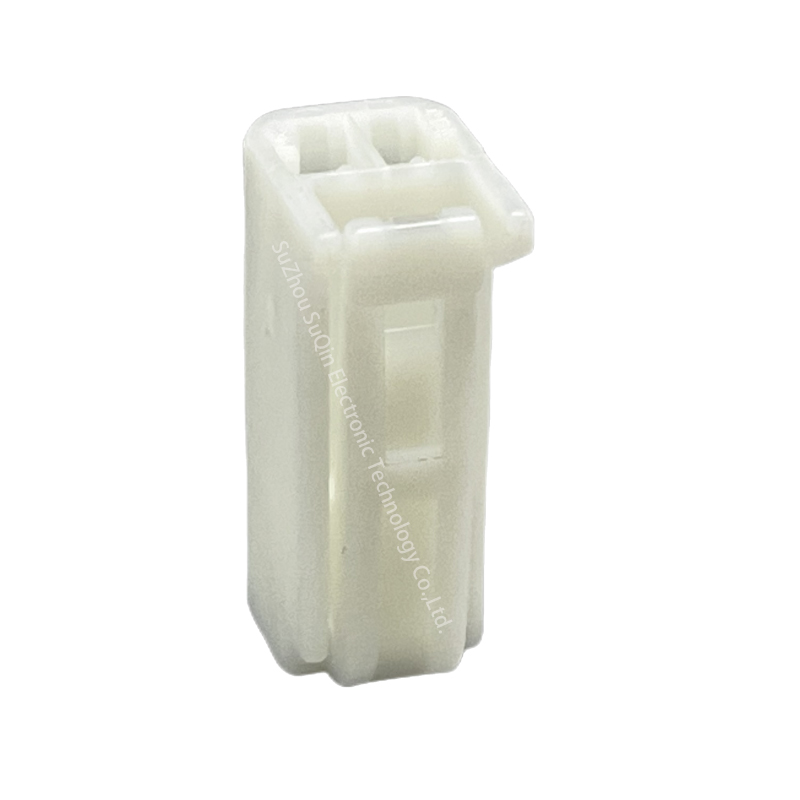

YAZAKI 7283-5845 Connector Housings
Short Description:
Model number：7283- 5845
Brand：YAZAKI
Product: Housings
Number of positions: 2 Position
Type: Receptacle (Female)
Installation style: Cable Mount / Free Hanging
Termination type: Press Fit
Application: Wire-to-Wire, Wire-to-Board, Wire-to-Device
Maximum operating temperature: + 80 °C
Minimum operating temperature: – 30 °C
Product type: Automotive Connectors
Product Detail
VEDIO
Product Tags
YAZAKI 7283-5845 Connector Housing
Series：YES/YESC Kaizen Connectors
Gender：Female (inferred from comparable models)
Sealing Status ：Sealed (dust/waterproof)
Number of Poles：Likely 12 or more (based on similar Kaizen series models)
Material：Heat-resistance Nylon
Color ：NATURAL
Application: Wire-to-Wire, Wire-to-Board, Wire-to-Device
Maximum operating temperature: + 80 °C
Minimum operating temperature: - 30 °C
Voltage Rating ：Up to 1000V AC
Current Rating ：15A typical (reference value)
Contact Resistance：≤10 milliohm (initial)
Insulation Resistance：≥20 Megohm (at 500V DC)
Data Overview
| Classified Parts | Housing |
| Family | 1.0III(040III) Connector |
| Tab size (mm) | 1.00 |
| Number of Poles | 2 |
| Allowable Current(Ref.) | 3A(Ref) |
Contact Features
| Male/Female | Female |
| Unsealed/Seald | Unsealed |
| Materials | PBT |
| Color | NATURAL |
| Temperature Range | -30 to 80deg.C |
